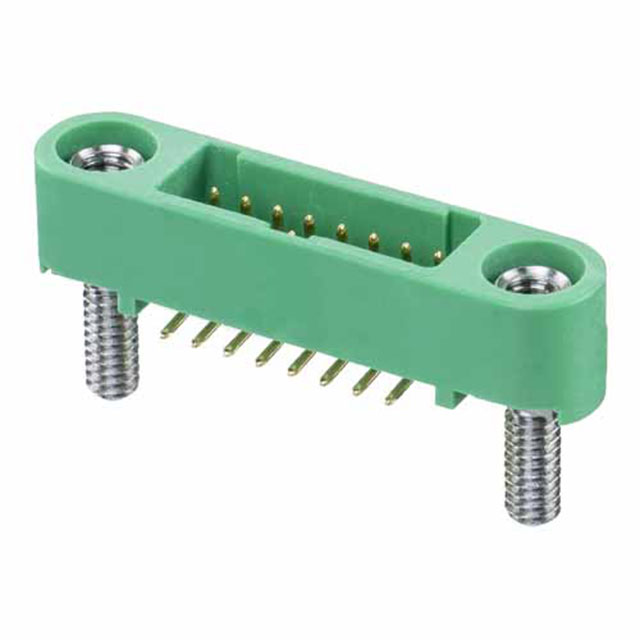

Part Number | G125-MS11605M2P | Manufacturer | Harwin |
---|---|---|---|
Description | CONN HDR 1.25MM VERT SMT 16POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 12071 pcs | Data sheet | 1.G125-MS11605M2P.pdf2.G125-MS11605M2P.pdf |
Voltage Rating | - | Termination | Solder |
Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
Series | Gecko SL | Row Spacing - Mating | 0.049" (1.25mm) |
Pitch - Mating | 0.049" (1.25mm) | Packaging | Bulk |
Overall Contact Length | - | Other Names | 952-3637 |
Operating Temperature | -65°C ~ 150°C | Number of Rows | 2 |
Number of Positions Loaded | All | Number of Positions | 16 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free | Insulation Height | 0.193" (4.90mm) |
Insulation Color | Green | Ingress Protection | - |
Features | Mating Flange, Mounting Flange, Pick and Place | Fastening Type | Threaded |
Detailed Description | Connector Header Surface Mount 16 position 0.049" (1.25mm) | Current Rating | 2A |
Contact Type | Male Pin | Contact Shape | Circular |
Contact Material | Phosphor Bronze | Contact Length - Post | - |
Contact Length - Mating | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | - |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
