SESD0402X1BN-0015-096

Hamlin / Littelfuse

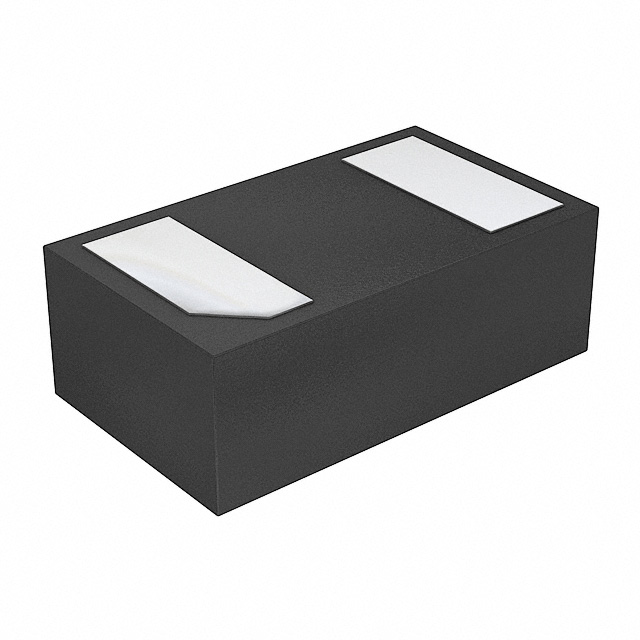

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SESD0402X1BN-0015-096
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	TVS DIODE 7V 14V 0402
Datasheets:	SESD0402X1BN-0015-096.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	325539 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 325539 pcs

Reference Price (In US Dollars)

1 pcs: $0.224

10 pcs: $0.188

25 pcs: $0.164

100 pcs: $0.141

250 pcs: $0.122

500 pcs: $0.103

1000 pcs: $0.08

2500 pcs: $0.073

5000 pcs: $0.068

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.224

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SESD0402X1BN-0015-096

Part Number	SESD0402X1BN-0015-096	Manufacturer	Hamlin / Littelfuse
Description	TVS DIODE 7V 14V 0402	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	325539 pcs	Data sheet	SESD0402X1BN-0015-096.pdf
Voltage - Reverse Standoff (Typ)	7V (Max)	Voltage - Clamping (Max) @ Ipp	14V (Typ)
Voltage - Breakdown (Min)	9.6V (Typ)	Type	Zener
Supplier Device Package	0402	Series	Automotive, AEC-Q101, SESD, SPA®
Power Line Protection	No	Power - Peak Pulse	-
Packaging	Original-Reel®	Package / Case	2-XDFN
Other Names	F6722DKR F6722DKR-ND SESD0402X1BN-0015-096DKR	Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)	Capacitance @ Frequency	0.15pF @ 3GHz
Bidirectional Channels	1	Applications	Automotive, HDMI
