Hamlin / Littelfuse
| Part Number | RHEF650-2 | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|

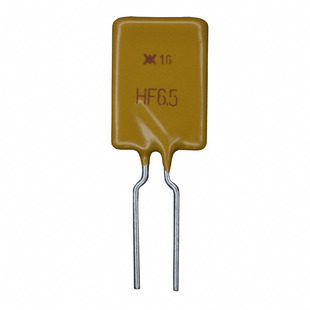

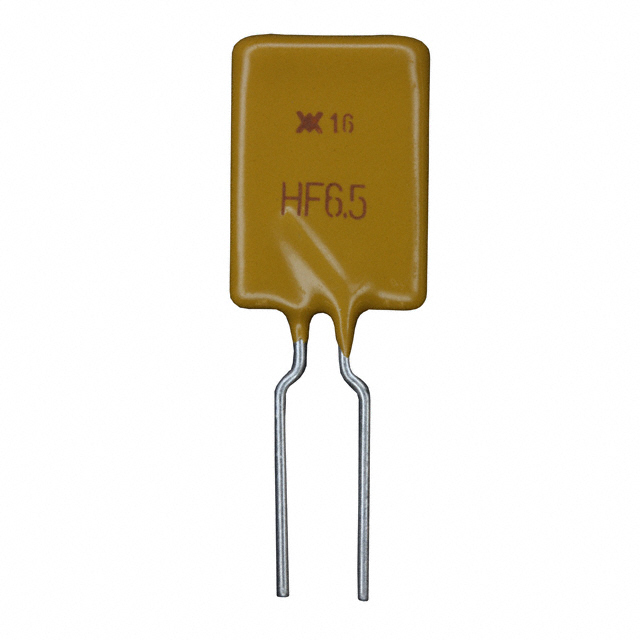

| Description | PTC RESET FUSE 16V 6.5A RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 150639 pcs | Data sheet | 1.RHEF650-2.pdf2.RHEF650-2.pdf |
| Voltage - Max | 16V | Type | Polymeric |
| Time to Trip | 5.5s | Thickness (Max) | - |
| Size / Dimension | 0.500" L x 0.118" W (12.70mm x 3.00mm) | Series | PolySwitch®, RHEF |
| Resistance - Post Trip (R1) (Max) | 26 mOhms | Resistance - Initial (Ri) (Min) | 11 mOhms |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Disc | Other Names | RF3315-000 RHEF650-2HF RHEF650-2HF-ND RHEF650-2HFTR |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Spacing | 0.199" (5.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.874" (22.20mm) | Detailed Description | Polymeric PTC Resettable Fuse 16V 6.5A Ih Through Hole Radial, Disc |
| Current - Trip (It) | 12A | Current - Max | 100A |
| Current - Hold (Ih) (Max) | 6.5A | Approvals | CSA, TUV, UL |
