59166-1-U-00-D

Hamlin / Littelfuse

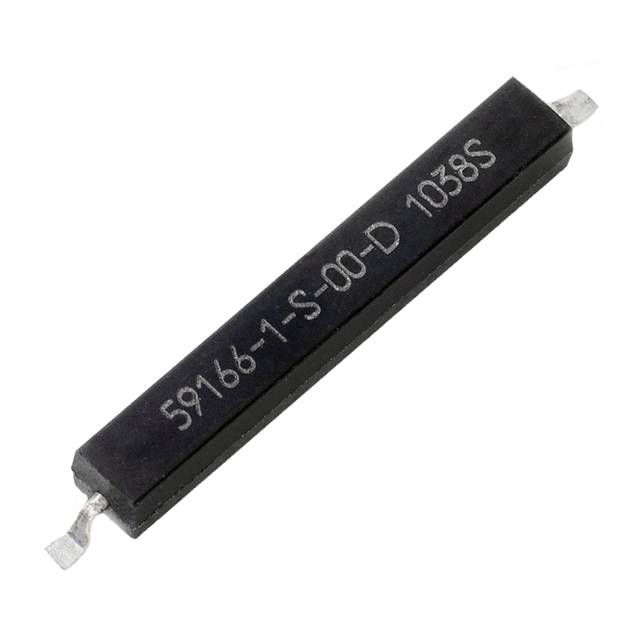

Image may be representation. See specifications for product details.

Product Overview

Part Number:	59166-1-U-00-D
Manufacturer/Brand:	Hamlin / Littelfuse
Product description	SWITCH REED SPST-NO 350MA 140V
Datasheets:	1.59166-1-U-00-D.pdf 2.59166-1-U-00-D.pdf 3.59166-1-U-00-D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	129237 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 129237 pcs

Reference Price (In US Dollars)

1500 pcs: $0.21

3000 pcs: $0.204

7500 pcs: $0.181

10500 pcs: $0.178

15000 pcs: $0.175

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.21

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 59166-1-U-00-D

Part Number	59166-1-U-00-D	Manufacturer	Hamlin / Littelfuse
Description	SWITCH REED SPST-NO 350MA 140V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	129237 pcs	Data sheet	1.59166-1-U-00-D.pdf 2.59166-1-U-00-D.pdf 3.59166-1-U-00-D.pdf
Voltage - Switching DC	200V	Voltage - Switching AC	140V
Type	Molded Body	Termination Style	Gull Wing
Size - Body	0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)	Series	59166
Release Time	0.2ms	Release Range	-
Power - Rated	10W	Packaging	Tape & Reel (TR)
Other Names	59166-1-U-00-D-ND 59166-1-U-00-DLF 59166-1-U-00-DLF-ND F7830TR	Operating Temperature	-40°C ~ 125°C
Operate Time	0.6ms	Operate Range	20 ~ 25AT
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Length - Overall	0.805" (20.45mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.099" (2.52mm)
Detailed Description	Molded Body Reed Switch SPST-NO 20 ~ 25AT Operate Range 10W 350mA (AC), 500mA (DC) 140V Surface Mount	Current - Switching	350mA (AC), 500mA (DC)
Current - Carry	800mA (DC)	Circuit	SPST-NO
Capacitance	0.3pF
