HARTING

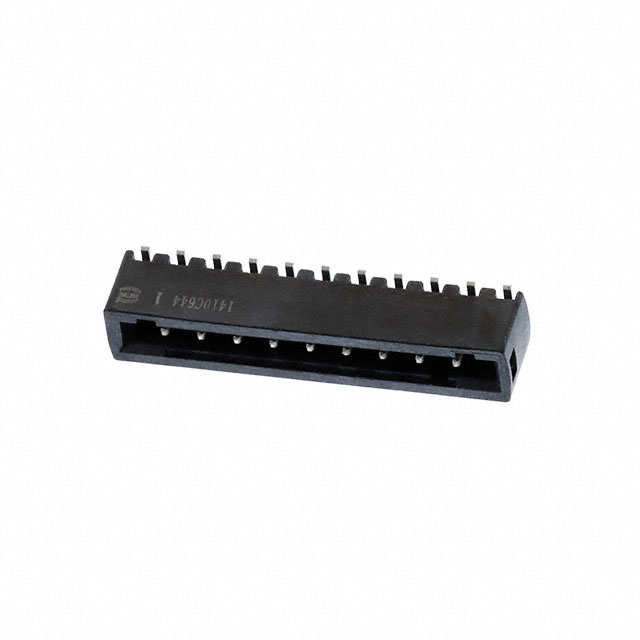

| Part Number | 14110913001000 | Manufacturer | HARTING |
|---|---|---|---|
| Description | TERM BLOCK HDR 9POS VERT 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44798 pcs | Data sheet | 14110913001000.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 160V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | har-flexicon® |
| Screw Size | - | Positions Per Level | 9 |
| Plug Wire Entry | - | Pitch | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Other Names | 1195-3652-1 |
| Operating Temperature | -40°C ~ 125°C | Number of Positions | 9 |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.254" (6.45mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | Vertical |
| Features | Board Guide, Pick and Place Cap | Detailed Description | 9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) Vertical Surface Mount |
| Current - UL | 6A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
