19001-10UL

Grayhill, Inc.

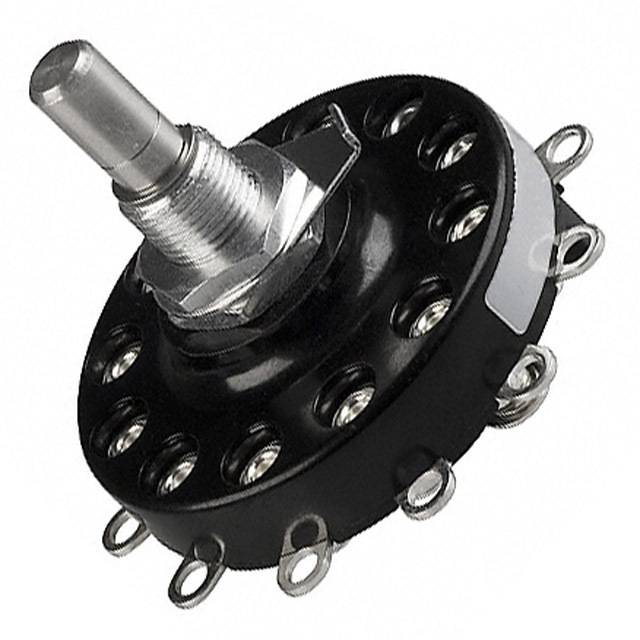

Image may be representation. See specifications for product details.

Product Overview

Part Number:	19001-10UL
Manufacturer/Brand:	Grayhill, Inc.
Product description	SWITCH ROTARY 10POS 15A 120V
Datasheets:	19001-10UL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2641 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2641 pcs

Reference Price (In US Dollars)

1 pcs: $15.948

10 pcs: $15.263

25 pcs: $15.035

50 pcs: $14.58

100 pcs: $12.985

250 pcs: $12.529

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$15.948

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 19001-10UL

Part Number	19001-10UL	Manufacturer	Grayhill, Inc.
Description	SWITCH ROTARY 10POS 15A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2641 pcs	Data sheet	19001-10UL.pdf
Voltage Rating - DC	120V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Series	19
Panel Cutout Dimensions	-	Other Names	1900110UL GH7286
Operating Force	8.641 ~ 26gfm	Number of Positions	10
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Fixed	Features	-
Detailed Description	Rotary Switch 10 Position SP10T 15A (AC), 1A (DC) 120VAC Panel Mount	Depth Behind Panel	24.13mm
Current Rating	15A (AC), 1A (DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Silver Alloy	Contact Finish	-
Circuit per Deck	SP10T	Angle of Throw	30°
Actuator Type	Flatted (6.35mm Dia)	Actuator Length	12.70mm
