GSID100A120S5C1

Global Power Technologies Group

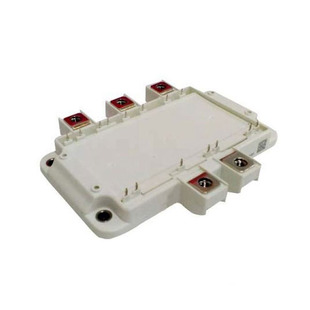

Image may be representation. See specifications for product details.

Product Overview

Part Number:	GSID100A120S5C1
Manufacturer/Brand:	Global Power Technologies Group
Product description	IGBT MODULE 1200V 170A
Datasheets:	GSID100A120S5C1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	801 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 801 pcs

Reference Price (In US Dollars)

1 pcs: $44.878

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$44.878

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of GSID100A120S5C1

Part Number	GSID100A120S5C1	Manufacturer	Global Power Technologies Group
Description	IGBT MODULE 1200V 170A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	801 pcs	Data sheet	GSID100A120S5C1.pdf
Voltage - Collector Emitter Breakdown (Max)	1200V	Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 100A
Supplier Device Package	Module	Series	-
Power - Max	650W	Package / Case	Module
Other Names	1560-1229	Operating Temperature	-40°C ~ 150°C (TJ)
NTC Thermistor	Yes	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Cies) @ Vce	13.7nF @ 25V
Input	Standard	IGBT Type	-
Detailed Description	IGBT Module Three Phase Inverter 1200V 170A 650W Chassis Mount Module	Current - Collector Cutoff (Max)	1mA
Current - Collector (Ic) (Max)	170A	Configuration	Three Phase Inverter
