Global Power Technologies Group
| Part Number | GPA040A120L-ND | Manufacturer | Global Power Technologies Group |
|---|---|---|---|
| Description | IGBT 1200V 80A 455W TO264 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29660 pcs | Data sheet | GPA040A120L-ND.pdf |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 40A |
| Test Condition | 600V, 40A, 5 Ohm, 15V | Td (on/off) @ 25°C | 41ns/200ns |
| Switching Energy | 5.8mJ (on), 1.5mJ (off) | Supplier Device Package | TO-264 |
| Series | - | Reverse Recovery Time (trr) | 220ns |
| Power - Max | 455W | Packaging | Tube |

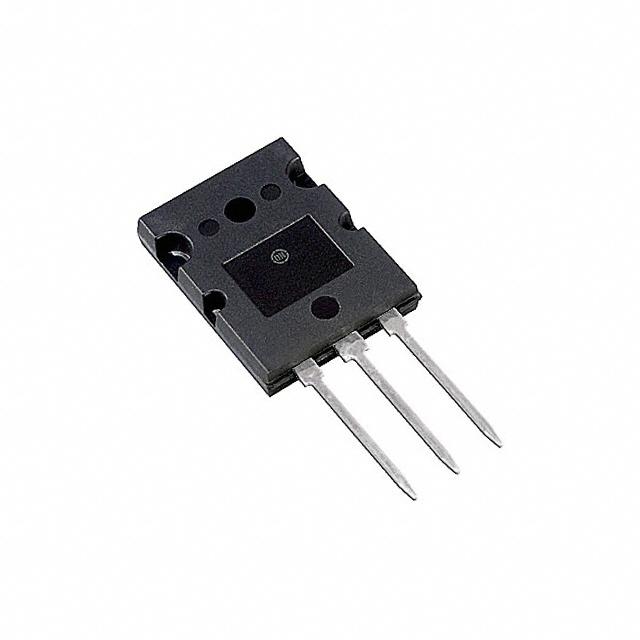

| Package / Case | TO-264-3, TO-264AA | Other Names | 1560-1223-1 1560-1223-1-ND 1560-1223-5 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | Standard | IGBT Type | NPT and Trench |
| Gate Charge | 510nC | Detailed Description | IGBT NPT and Trench 1200V 80A 455W Through Hole TO-264 |
| Current - Collector Pulsed (Icm) | 120A | Current - Collector (Ic) (Max) | 80A |
