TX36/23/15-3E27-M7

FERROXCUBE

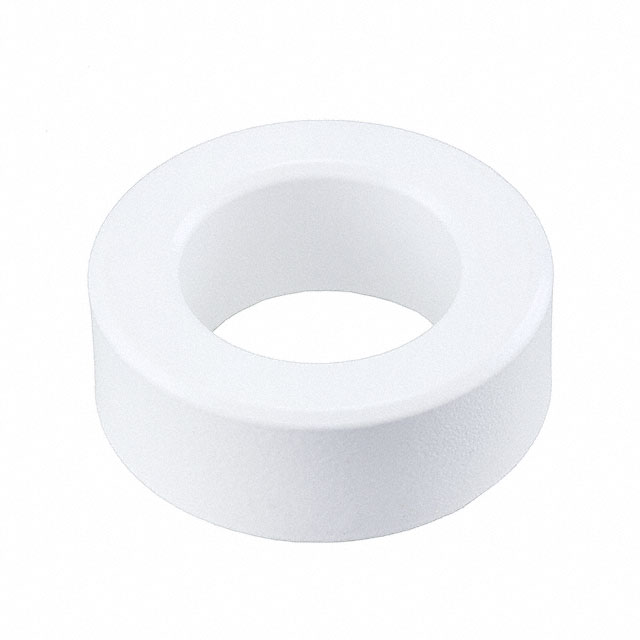

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TX36/23/15-3E27-M7
Manufacturer/Brand:	FERROXCUBE
Product description	FERRITE CORES ROUND
Datasheets:	TX36/23/15-3E27-M7.pdf
Stock Condition	58828 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58828 pcs

Reference Price (In US Dollars)

1 pcs: $1.141

10 pcs: $0.979

25 pcs: $0.734

50 pcs: $0.714

100 pcs: $0.632

250 pcs: $0.591

500 pcs: $0.551

1000 pcs: $0.51

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.141

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TX36/23/15-3E27-M7

Part Number	TX36/23/15-3E27-M7	Manufacturer	FERROXCUBE
Description	FERRITE CORES ROUND	Lead Free Status / RoHS Status
Quantity Available	58828 pcs	Data sheet	TX36/23/15-3E27-M7.pdf
Width	-	Tolerance	±25%
Supplier Device Package	TX 36 x 23 x 15	Series	*
Other Names	1779-1603 CA4TX03623159U410P	Moisture Sensitivity Level (MSL)	Not Applicable
Material	3E27	Manufacturer Standard Lead Time	24 Weeks
Length	-	Height	16.00mm
Gap	Ungapped	Finish	Epoxy
Effective Permeability (µe)	7000	Effective Magnetic Volume (Ve) mm³	8740
Effective Length (le) mm	89.7	Effective Area (Ae) mm²	97.5
Diameter	37.15mm	Core Type	Toroid
Core Factor (ΣI/A) mm1	0.919
