SG-9101CA 48.0000M-C20PHAAA5

Epson

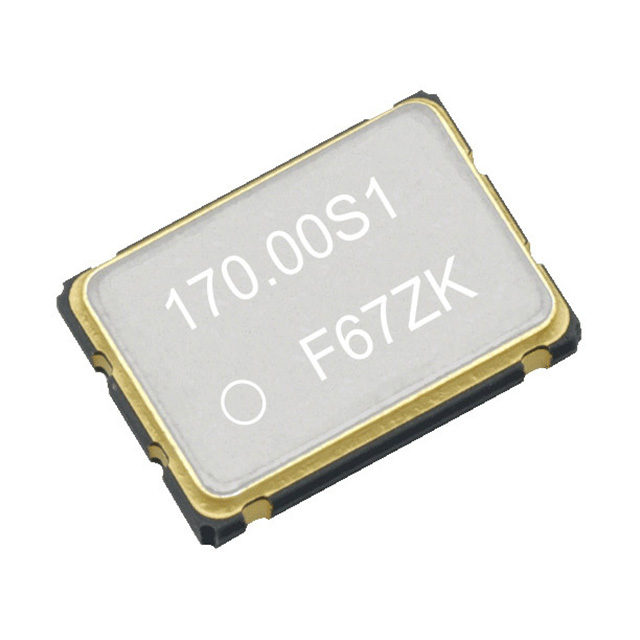

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SG-9101CA 48.0000M-C20PHAAA5
Manufacturer/Brand:	Epson
Product description	OSC XO 48.0MHZ CTR SPRD SMD
Datasheets:	1.SG-9101CA 48.0000M-C20PHAAA5.pdf 2.SG-9101CA 48.0000M-C20PHAAA5.pdf 3.SG-9101CA 48.0000M-C20PHAAA5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23941 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23941 pcs

Reference Price (In US Dollars)

3000 pcs: $1.405

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.405

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SG-9101CA 48.0000M-C20PHAAA5

Part Number	SG-9101CA 48.0000M-C20PHAAA5	Manufacturer	Epson
Description	OSC XO 48.0MHZ CTR SPRD SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23941 pcs	Data sheet	1.SG-9101CA 48.0000M-C20PHAAA5.pdf 2.SG-9101CA 48.0000M-C20PHAAA5.pdf 3.SG-9101CA 48.0000M-C20PHAAA5.pdf
Voltage - Supply	1.62 V ~ 3.63 V	Type	XO (Standard)
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)	Series	SG-9101
Ratings	-	Package / Case	4-SMD, No Lead
Output	CMOS	Other Names	SG-9101CA 48.0000M-C20PHAAA SG-9101CA 48.0000M-C20PHAAA-ND SG-9101CA 48.0000M-C20PHAAA5-ND SG-9101CA48.0000M-C20PHAAA5
Operating Temperature	-40°C ~ 105°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.055" (1.40mm)
Function	Enable/Disable	Frequency Stability	-
Frequency	48MHz	Detailed Description	48MHz XO (Standard) CMOS Oscillator 1.62 V ~ 3.63 V Enable/Disable 4-SMD, No Lead
Current - Supply (Max)	8.3mA	Current - Supply (Disable) (Max)	3.7mA
Base Resonator	Crystal	Absolute Pull Range (APR)	-
