HomeProductsRF/IF and RFIDRF Transceiver ModulesAMW004

AMW004

Energy Micro (Silicon Labs)Energy Micro (Silicon Labs)

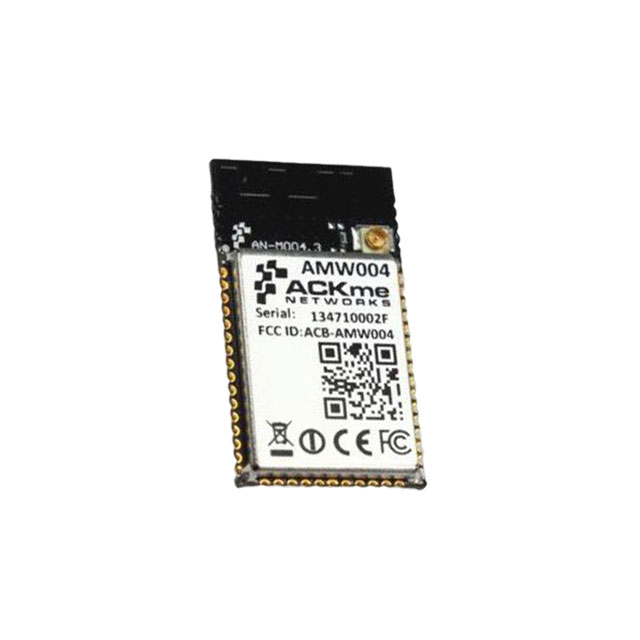

AMW004 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AMW004
Manufacturer/Brand: Energy Micro (Silicon Labs)
Product description RF TXRX MODULE WIFI TRACE + U.FL
Datasheets: AMW004.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4564 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 4564 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AMW004

Part Number AMW004 Manufacturer Energy Micro (Silicon Labs)
Description RF TXRX MODULE WIFI TRACE + U.FL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4564 pcs Data sheet AMW004.pdf
Voltage - Supply 3.3V Utilized IC / Part BCM43362
Series - Serial Interfaces SPI, UART
Sensitivity -94dBm RF Family/Standard WiFi
Protocol 802.11b/g/n Power - Output 18.5dBm
Packaging Bulk Package / Case 54-SMD Module
Other Names 1586-1012
AMW004 /S
AMW004/S
AMW004/T		 Operating Temperature -30°C ~ 85°C
Mounting Type Surface Mount Modulation CCK, DSSS, OFDM
Memory Size 2MB ROM, 128kB RAM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Frequency 2.4GHz Data Rate 65Mbps
Current - Transmitting 348.8mA Current - Receiving 87.8mA
Antenna Type Integrated, Trace + U.FL
