VOS628A-2X001T

Electro-Films (EFI) / Vishay

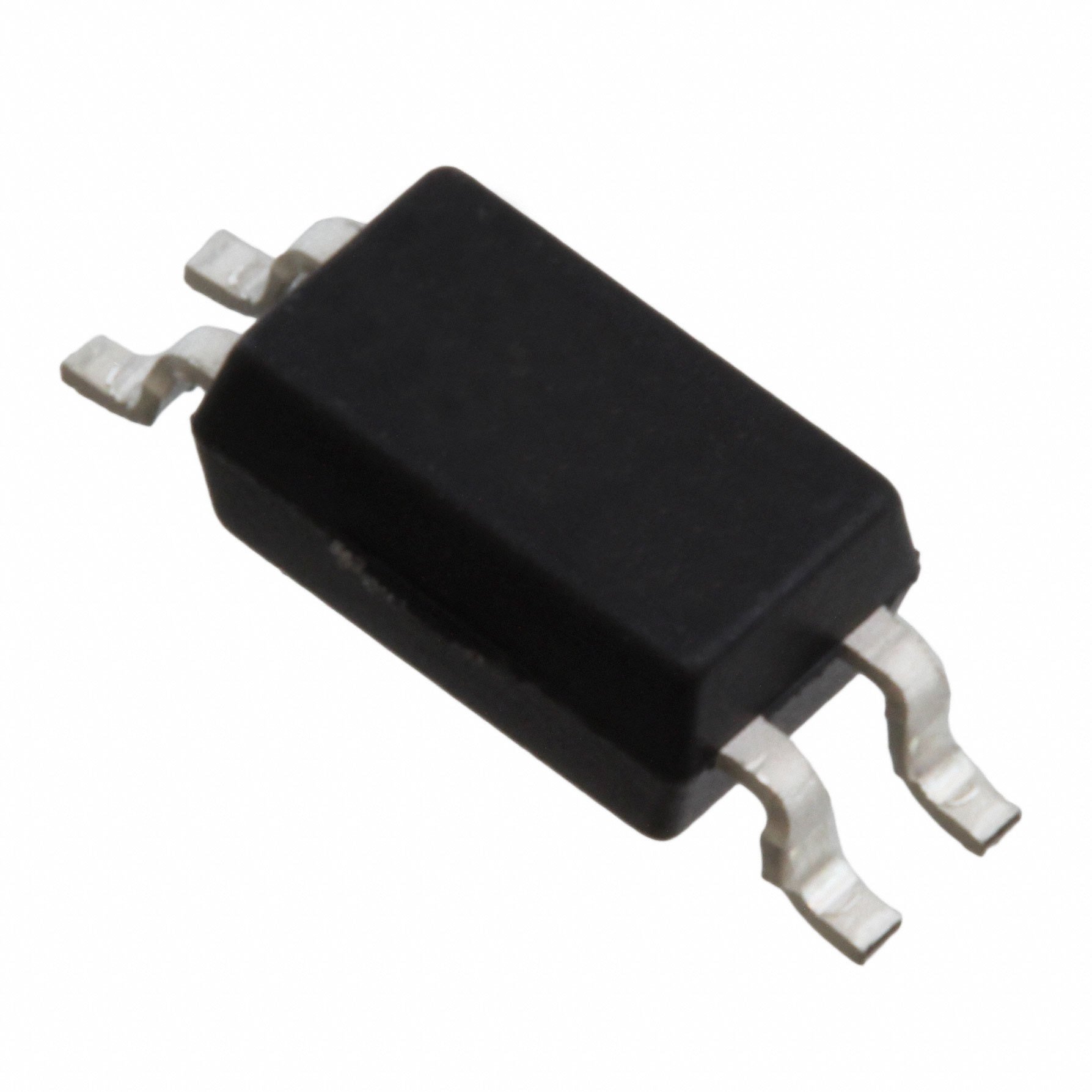

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VOS628A-2X001T
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	OPTOISOLATOR 3.75KV TRANS 4SSOP
Datasheets:	1.VOS628A-2X001T.pdf 2.VOS628A-2X001T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	166579 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 166579 pcs

Reference Price (In US Dollars)

3000 pcs: $0.124

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.124

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VOS628A-2X001T

Part Number	VOS628A-2X001T	Manufacturer	Electro-Films (EFI) / Vishay
Description	OPTOISOLATOR 3.75KV TRANS 4SSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	166579 pcs	Data sheet	1.VOS628A-2X001T.pdf 2.VOS628A-2X001T.pdf
Voltage - Output (Max)	80V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.1V	Vce Saturation (Max)	400mV
Turn On / Turn Off Time (Typ)	5µs, 8µs	Supplier Device Package	4-SSOP
Series	-	Rise / Fall Time (Typ)	5µs, 7µs
Packaging	Tape & Reel (TR)	Package / Case	4-SOIC (0.173", 4.40mm Width)
Output Type	Transistor	Operating Temperature	-55°C ~ 110°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	AC, DC
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP	Current Transfer Ratio (Min)	63% @ 1mA
Current Transfer Ratio (Max)	125% @ 1mA	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	50mA
