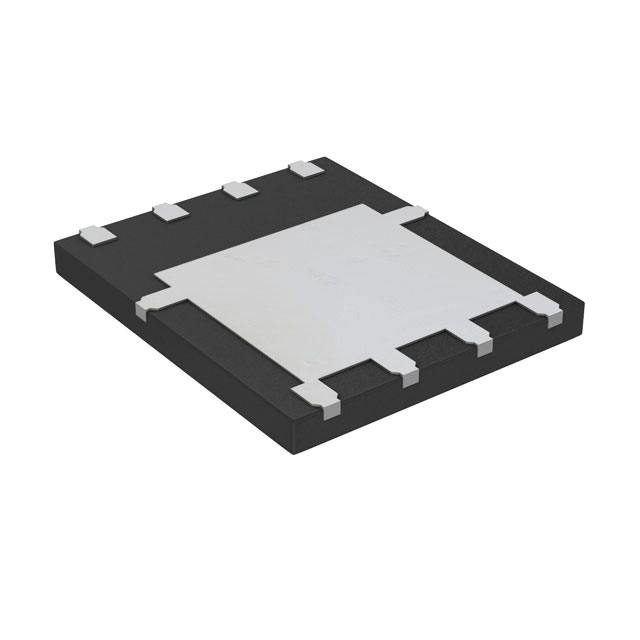

Electro-Films (EFI) / Vishay
| Part Number | SIDR680DP-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 80V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73647 pcs | Data sheet | SIDR680DP-T1-GE3.pdf |
| Vgs(th) (Max) @ Id | 3.4V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | PowerPAK® SO-8DC |
| Series | TrenchFET® Gen IV | Rds On (Max) @ Id, Vgs | 2.9 mOhm @ 20A, 10V |
| Power Dissipation (Max) | 6.25W (Ta), 125W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | PowerPAK® SO-8 | Other Names | SIDR680DP-T1-GE3TR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 32 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 5150pF @ 40V |
| Gate Charge (Qg) (Max) @ Vgs | 105nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 7.5V, 10V |
| Drain to Source Voltage (Vdss) | 80V | Detailed Description | N-Channel 80V 32.8A (Ta), 100A (Tc) 6.25W (Ta), 125W (Tc) Surface Mount PowerPAK® SO-8DC |
| Current - Continuous Drain (Id) @ 25°C | 32.8A (Ta), 100A (Tc) |
