PTN0805E80R6BST1

Electro-Films (EFI) / Vishay

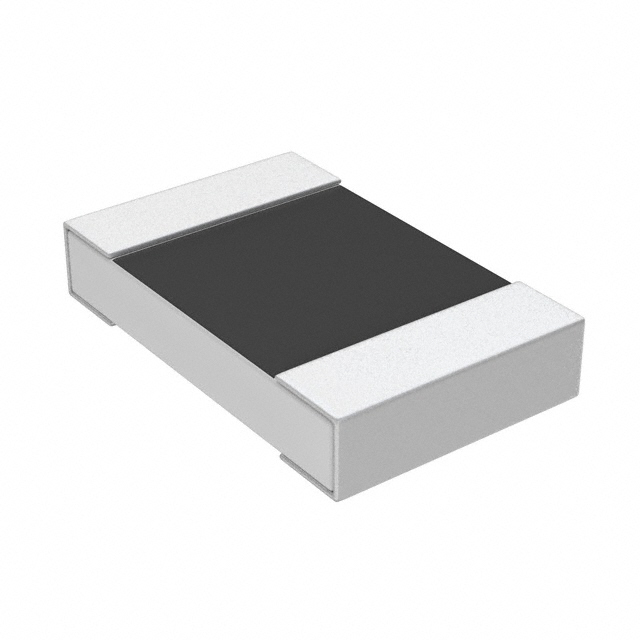

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PTN0805E80R6BST1
Manufacturer/Brand:	Electro-Films (EFI) / Vishay
Product description	RES 80.6 OHM 0.1% 1/5W 0805
Datasheets:	PTN0805E80R6BST1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	241993 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 241993 pcs

Reference Price (In US Dollars)

1000 pcs: $0.082

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.082

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PTN0805E80R6BST1

Part Number	PTN0805E80R6BST1	Manufacturer	Electro-Films (EFI) / Vishay
Description	RES 80.6 OHM 0.1% 1/5W 0805	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	241993 pcs	Data sheet	PTN0805E80R6BST1.pdf
Tolerance	±0.1%	Temperature Coefficient	±25ppm/°C
Supplier Device Package	0805	Size / Dimension	0.080" L x 0.050" W (2.03mm x 1.27mm)
Series	PTN	Resistance	80.6 Ohms
Power (Watts)	0.2W, 1/5W	Packaging	Tape & Reel (TR)
Package / Case	0805 (2012 Metric)	Other Names	764-1547-2
Operating Temperature	-55°C ~ 155°C	Number of Terminations	2
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	26 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.033" (0.84mm)
Features	Anti-Sulfur, Moisture Resistant, Non-Inductive	Failure Rate	-
Detailed Description	80.6 Ohms ±0.1% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Moisture Resistant, Non-Inductive Thin Film	Composition	Thin Film
