E-Switch

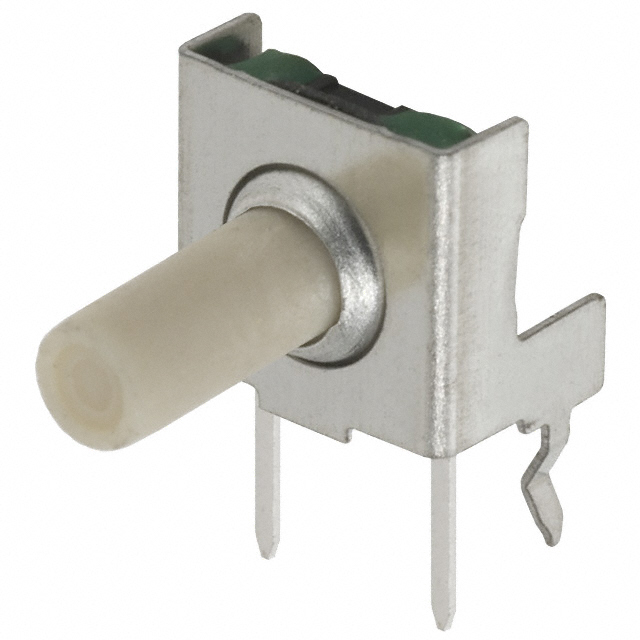

| Part Number | TL6110DF300QP | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 50V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95254 pcs | Data sheet | TL6110DF300QP.pdf |
| Termination Style | PC Pin | Switch Travel | 0.50mm |
| Switch Function | Off-Mom | Series | TL6110 |
| Packaging | Tube | Outline | 8.00mm x 8.00mm |
| Other Names | EG4360 EG4360-5 EG4360-ND |
Operating Temperature | -40°C ~ 85°C |
| Operating Force | 300gf | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 500,000 Cycles |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | - |
| Illumination Type, Color | - | Illumination | Non-Illuminated |
| Features | - | Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
| Contact Rating @ Voltage | 0.05A @ 50VDC | Circuit | SPST-NO |
| Actuator Type | Standard | Actuator Orientation | Side Actuated |
| Actuator Material | Polyamide (PA), Nylon | Actuator Length, Right Angle | 8.70mm |
| Actuator Height off PCB, Vertical | - |
