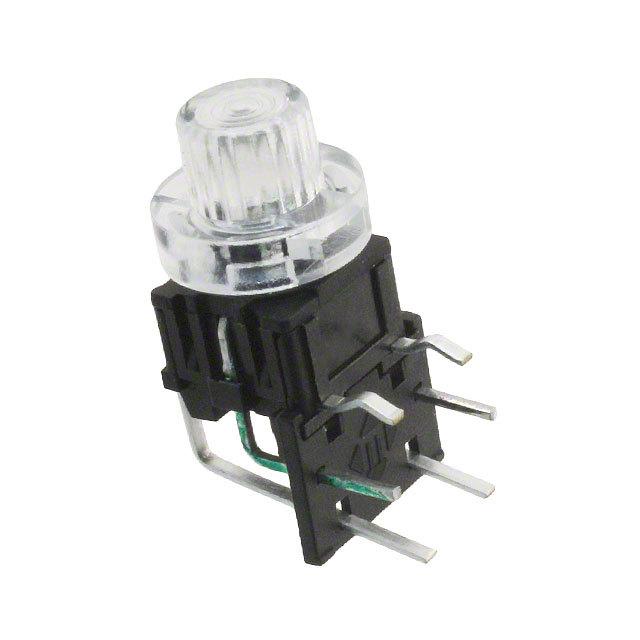

E-Switch
| Part Number | TL1250F280GQRCLR | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59030 pcs | Data sheet | TL1250F280GQRCLR.pdf |
| Termination Style | PC Pin | Switch Travel | 0.20mm |
| Switch Function | Off-Mom | Series | TL1250 |
| Packaging | Tube | Outline | 8.30mm x 7.00mm |
| Other Names | EG4684 EG4684-5 EG4684-ND |
Operating Temperature | -20°C ~ 70°C |
| Operating Force | 280gf | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 50,000 Cycles |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Illumination Voltage (Nominal) | 2.3 VDC |
| Illumination Type, Color | LED, Green | Illumination | Illuminated |
| Features | Tactile Feedback | Detailed Description | Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle |
| Contact Rating @ Voltage | 0.05A @ 12VDC | Circuit | SPST-NO |
| Actuator Type | Round Button | Actuator Orientation | Side Actuated |
| Actuator Material | - | Actuator Length, Right Angle | 10.70mm |
| Actuator Height off PCB, Vertical | - |
