R5CBLKREDEF0

E-Switch

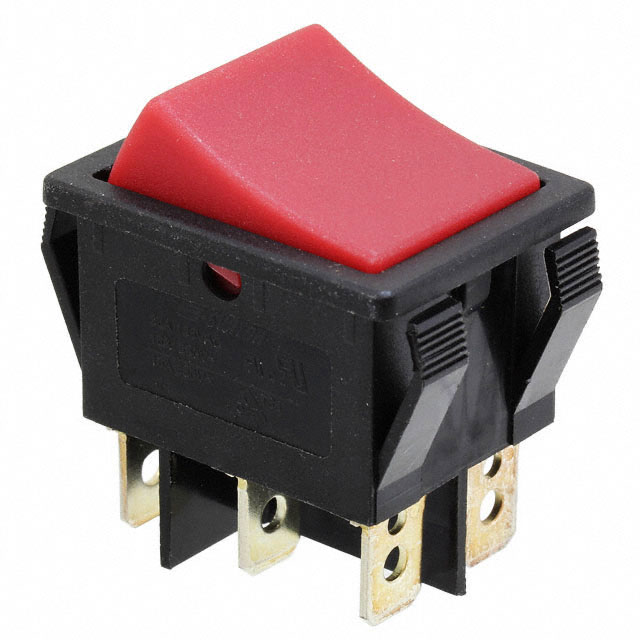

Image may be representation. See specifications for product details.

Product Overview

Part Number:	R5CBLKREDEF0
Manufacturer/Brand:	E-Switch
Product description	SWITCH ROCKER DPDT 20A 125V
Datasheets:	1.R5CBLKREDEF0.pdf 2.R5CBLKREDEF0.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	67415 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 67415 pcs

Reference Price (In US Dollars)

1 pcs: $0.789

10 pcs: $0.755

25 pcs: $0.72

50 pcs: $0.686

100 pcs: $0.652

250 pcs: $0.634

500 pcs: $0.60

1000 pcs: $0.532

5000 pcs: $0.514

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.789

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of R5CBLKREDEF0

Part Number	R5CBLKREDEF0	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	67415 pcs	Data sheet	1.R5CBLKREDEF0.pdf 2.R5CBLKREDEF0.pdf
Voltage Rating - AC	125V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-On	Series	R5
Panel Cutout Dimensions	Rectangular - 30.00mm x 22.20mm	Packaging	Bulk
Operating Temperature	-20°C ~ 55°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Red
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
