100SP3T8B13M1QEH

E-Switch

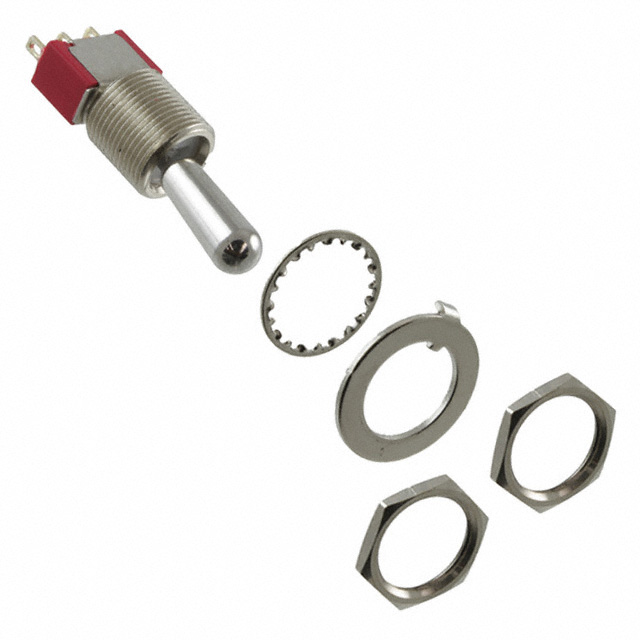

Image may be representation. See specifications for product details.

Product Overview

Part Number:	100SP3T8B13M1QEH
Manufacturer/Brand:	E-Switch
Product description	SWITCH TOGGLE SPDT 5A 120V
Datasheets:	1.100SP3T8B13M1QEH.pdf 2.100SP3T8B13M1QEH.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36314 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 36314 pcs

Reference Price (In US Dollars)

1 pcs: $1.425

10 pcs: $1.366

25 pcs: $1.307

50 pcs: $1.248

100 pcs: $1.129

250 pcs: $1.04

500 pcs: $0.951

1000 pcs: $0.832

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.425

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 100SP3T8B13M1QEH

Part Number	100SP3T8B13M1QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36314 pcs	Data sheet	1.100SP3T8B13M1QEH.pdf 2.100SP3T8B13M1QEH.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	100	Panel Cutout Dimensions	Circular - 11.91mm Dia
Packaging	Bulk	Other Names	EG2387 T113021
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch SPDT Panel Mount
Current Rating	5A (AC/DC)	Circuit	SPDT
Bushing Thread	15/32-32	Actuator Type	Standard Round
Actuator Material	Brass, Chrome Plated	Actuator Length	18.00mm
