ZX3CD2S1M832TA

Diodes Incorporated

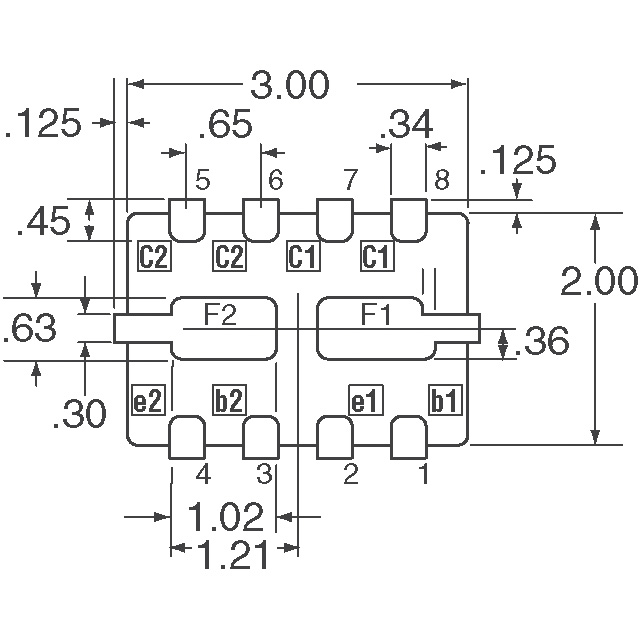

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ZX3CD2S1M832TA
Manufacturer/Brand:	Diodes Incorporated
Product description	TRANS PNP 20V 3.5A 8MLP
Datasheets:	ZX3CD2S1M832TA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	105512 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 105512 pcs

Reference Price (In US Dollars)

1 pcs: $0.441

10 pcs: $0.394

100 pcs: $0.307

500 pcs: $0.254

1000 pcs: $0.20

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.441

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ZX3CD2S1M832TA

Part Number	ZX3CD2S1M832TA	Manufacturer	Diodes Incorporated
Description	TRANS PNP 20V 3.5A 8MLP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	105512 pcs	Data sheet	ZX3CD2S1M832TA.pdf
Voltage - Collector Emitter Breakdown (Max)	20V	Vce Saturation (Max) @ Ib, Ic	300mV @ 300mA, 3.5A
Transistor Type	PNP + Diode (Isolated)	Supplier Device Package	8-MLP (2x3)
Series	-	Power - Max	3W
Packaging	Cut Tape (CT)	Package / Case	8-VDFN Exposed Pad
Other Names	ZX3CD2S1M832CT	Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	180MHz
Detailed Description	Bipolar (BJT) Transistor PNP + Diode (Isolated) 20V 3.5A 180MHz 3W Surface Mount 8-MLP (2x3)	DC Current Gain (hFE) (Min) @ Ic, Vce	150 @ 2A, 2V
Current - Collector Cutoff (Max)	25nA	Current - Collector (Ic) (Max)	3.5A
Base Part Number	ZX3CD2S1M832
