SDM20U40-7

Diodes Incorporated

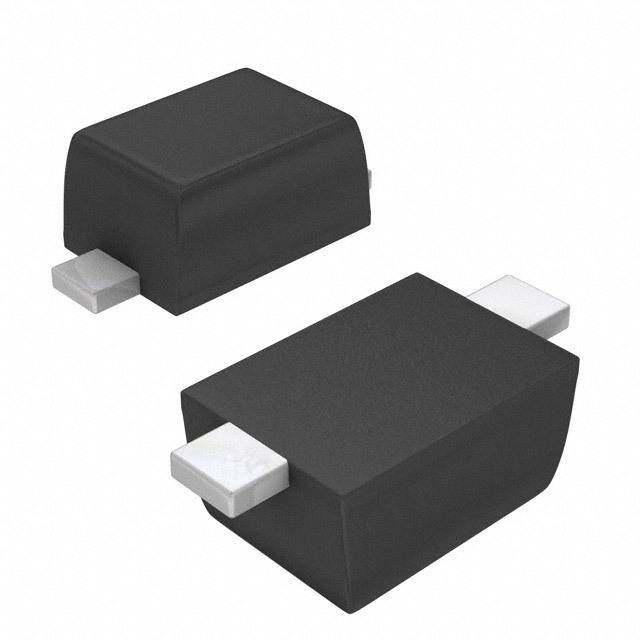

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDM20U40-7
Manufacturer/Brand:	Diodes Incorporated
Product description	DIODE SCHOTTKY 40V 250MA SOD523
Datasheets:	SDM20U40-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1563225 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1563225 pcs

Reference Price (In US Dollars)

3000 pcs: $0.022

6000 pcs: $0.02

15000 pcs: $0.017

30000 pcs: $0.016

75000 pcs: $0.015

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.022

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDM20U40-7

Part Number	SDM20U40-7	Manufacturer	Diodes Incorporated
Description	DIODE SCHOTTKY 40V 250MA SOD523	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1563225 pcs	Data sheet	SDM20U40-7.pdf
Voltage - Forward (Vf) (Max) @ If	600mV @ 200mA	Voltage - DC Reverse (Vr) (Max)	40V
Supplier Device Package	SOD-523	Speed	Fast Recovery = 200mA (Io)
Series	-	Reverse Recovery Time (trr)	10ns
Packaging	Tape & Reel (TR)	Package / Case	SC-79, SOD-523
Other Names	SDM20U40-7DITR SDM20U40-FDITR SDM20U40-FDITR-ND SDM20U407 SDM20U40DITR SDM20U40DITR-ND	Operating Temperature - Junction	-65°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 40V 250mA (DC) Surface Mount SOD-523
Current - Reverse Leakage @ Vr	5µA @ 30V	Current - Average Rectified (Io)	250mA (DC)
Capacitance @ Vr, F	50pF @ 0V, 1MHz	Base Part Number	SDM20U40
