SDM1U20CSP-7

Diodes Incorporated

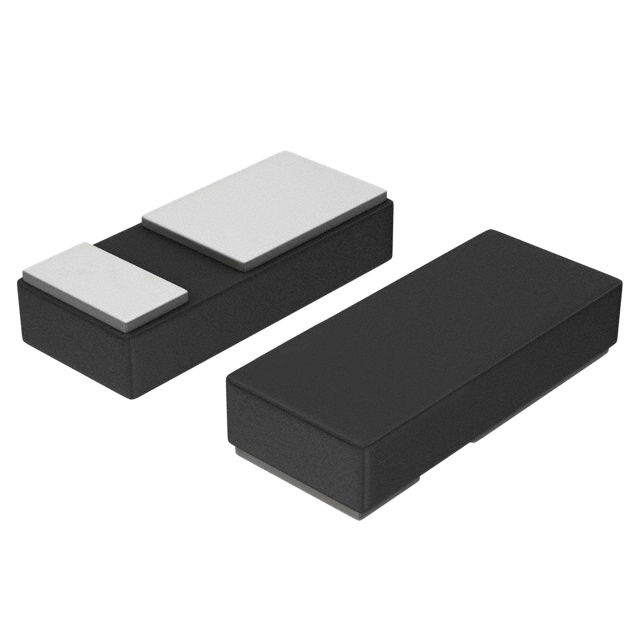

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDM1U20CSP-7
Manufacturer/Brand:	Diodes Incorporated
Product description	DIODE SCHTKY 20V 1A X3-WLB1406-2
Datasheets:	SDM1U20CSP-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1032781 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1032781 pcs

Reference Price (In US Dollars)

5000 pcs: $0.031

10000 pcs: $0.027

25000 pcs: $0.025

50000 pcs: $0.023

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.031

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDM1U20CSP-7

Part Number	SDM1U20CSP-7	Manufacturer	Diodes Incorporated
Description	DIODE SCHTKY 20V 1A X3-WLB1406-2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1032781 pcs	Data sheet	SDM1U20CSP-7.pdf
Voltage - Forward (Vf) (Max) @ If	440mV @ 1A	Voltage - DC Reverse (Vr) (Max)	20V
Supplier Device Package	X3-WLB1406-2	Speed	Fast Recovery = 200mA (Io)
Series	-	Packaging	Tape & Reel (TR)
Package / Case	2-XDFN	Other Names	SDM1U20CSP-7DITR
Operating Temperature - Junction	-55°C ~ 150°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	20 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 20V 1A Surface Mount X3-WLB1406-2	Current - Reverse Leakage @ Vr	100µA @ 20V
Current - Average Rectified (Io)	1A	Capacitance @ Vr, F	76pF @ 4V, 1MHz
