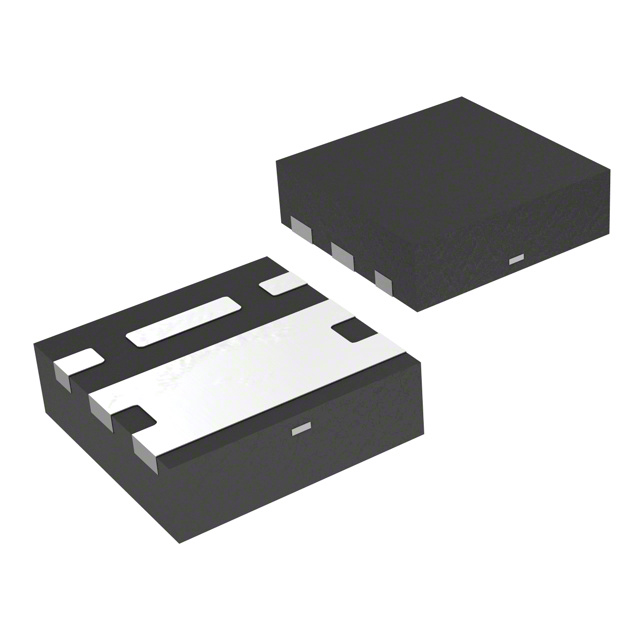

Diodes Incorporated
| Part Number | DMN30H4D0LFDE-7 | Manufacturer | Diodes Incorporated |
|---|---|---|---|
| Description | MOSFET N-CH 300V .55A 6UDFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 318919 pcs | Data sheet | DMN30H4D0LFDE-7.pdf |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | U-DFN2020-6 (Type E) |
| Series | - | Rds On (Max) @ Id, Vgs | 4 Ohm @ 300mA, 10V |
| Power Dissipation (Max) | 630mW (Ta) | Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad | Other Names | DMN30H4D0LFDE-7DITR DMN30H4D0LFDE7 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 187.3pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 7.6nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 10V |
| Drain to Source Voltage (Vdss) | 300V | Detailed Description | N-Channel 300V 550mA (Ta) 630mW (Ta) Surface Mount U-DFN2020-6 (Type E) |
| Current - Continuous Drain (Id) @ 25°C | 550mA (Ta) |
