CCS020M12CM2

Cree Wolfspeed

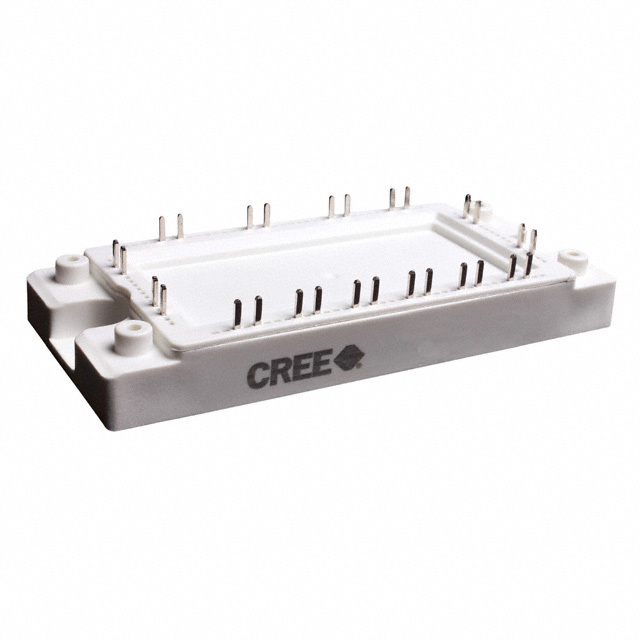

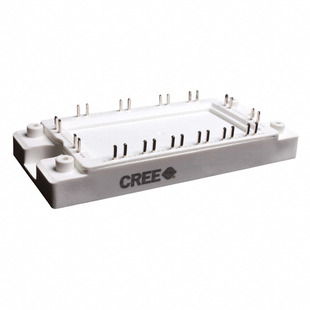

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CCS020M12CM2
Manufacturer/Brand:	Cree Wolfspeed
Product description	MOSFET 6N-CH 1200V 29.5A MODULE
Datasheets:	CCS020M12CM2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	445 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 445 pcs

Reference Price (In US Dollars)

1 pcs: $71.509

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$71.509

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CCS020M12CM2

Part Number	CCS020M12CM2	Manufacturer	Cree Wolfspeed
Description	MOSFET 6N-CH 1200V 29.5A MODULE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	445 pcs	Data sheet	CCS020M12CM2.pdf
Vgs(th) (Max) @ Id	2.2V @ 1mA (Typ)	Supplier Device Package	Module
Series	Z-Rec®	Rds On (Max) @ Id, Vgs	98 mOhm @ 20A, 20V
Power - Max	167W	Packaging	Tray
Package / Case	Module	Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	52 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	900pF @ 800V	Gate Charge (Qg) (Max) @ Vgs	61.5nC @ 20V
FET Type	6 N-Channel (3-Phase Bridge)	FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)	Detailed Description	Mosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 29.5A (Tc) 167W Chassis Mount Module
Current - Continuous Drain (Id) @ 25°C	29.5A (Tc)
