CL-503T-SD-T

Citizen Electronics Co., Ltd.

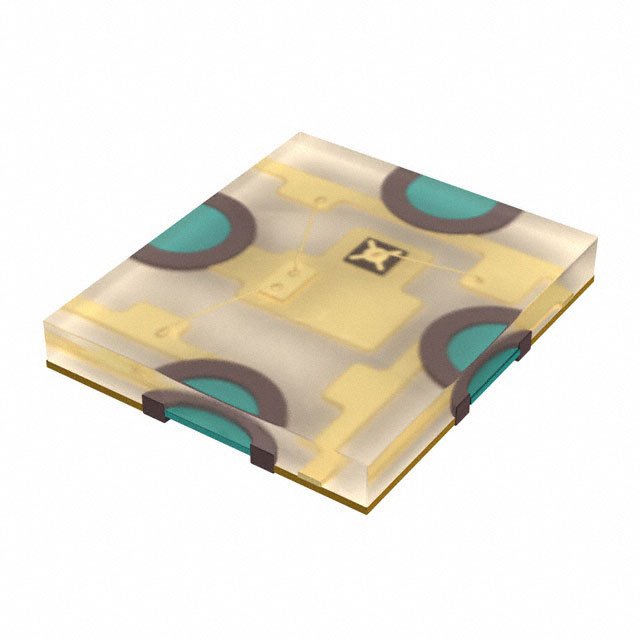

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CL-503T-SD-T
Manufacturer/Brand:	Citizen Electronics Co., Ltd.
Product description	LED TRI TOP FIRING 1.5 X 1.3
Datasheets:	CL-503T-SD-T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	243828 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 243828 pcs

Reference Price (In US Dollars)

1 pcs: $0.306

10 pcs: $0.238

25 pcs: $0.197

100 pcs: $0.17

250 pcs: $0.15

500 pcs: $0.129

1000 pcs: $0.102

2500 pcs: $0.095

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.306

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CL-503T-SD-T

Part Number	CL-503T-SD-T	Manufacturer	Citizen Electronics Co., Ltd.
Description	LED TRI TOP FIRING 1.5 X 1.3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	243828 pcs	Data sheet	CL-503T-SD-T.pdf
Wavelength - Peak	618nm Red, 530nm Green, 470nm Blue	Wavelength - Dominant	-
Voltage - Forward (Vf) (Typ)	1.85V Red, 2.7V Green, 2.75V Blue	Viewing Angle	-
Supplier Device Package	-	Size / Dimension	1.50mm L x 1.30mm W
Series	CL-503	Packaging	Cut Tape (CT)
Package / Case	4-SMD, No Lead	Other Names	1642-1509-1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	36mcd Red, 180mcd Green, 40mcd Blue	Manufacturer Standard Lead Time	8 Weeks
Lens Transparency	-	Lens Style/Size	Rectangle with Flat Top, 1.30mm x 1.50mm
Lens Color	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.35mm	Features	-
Detailed Description	Red, Green, Blue (RGB) LED Indication - Discrete 1.85V Red, 2.7V Green, 2.75V Blue 4-SMD, No Lead	Current - Test	5mA Red, 5mA Green, 5mA Blue
Configuration	Common Anode	Color	Red, Green, Blue (RGB)
