PA0189-S

Chip Quik, Inc.Chip Quik, Inc.

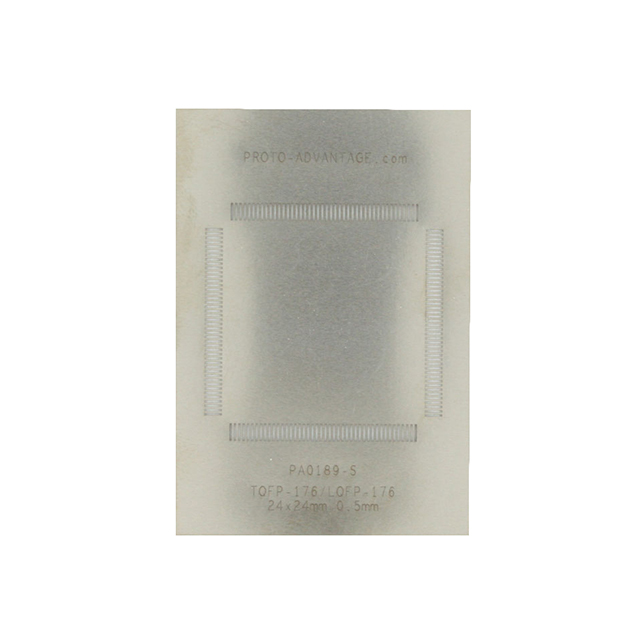

PA0189-S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PA0189-S
Manufacturer/Brand: Chip Quik, Inc.
Product description LQFP-176 (0.5MM PITCH, 24X24MM B
Datasheets: 1.PA0189-S.pdf2.PA0189-S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 8153 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 8153 pcs
Reference Price (In US Dollars)
1 pcs
$4.632
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$4.632

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PA0189-S

Part Number PA0189-S Manufacturer Chip Quik, Inc.
Description LQFP-176 (0.5MM PITCH, 24X24MM B Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 8153 pcs Data sheet 1.PA0189-S.pdf2.PA0189-S.pdf
Type LQFP Thickness 0.0040" (0.102mm)
Thermal Center Pad - Series Proto-Advantage
Pitch 0.020" (0.50mm) Outer Dimension 1.350" L x 1.950" W (34.29mm x 49.53mm)
Number of Positions 176 Material Stainless Steel
Manufacturer Standard Lead Time 2 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inner Dimension 0.945" L x 0.945" W (24.00mm x 24.00mm)
