PA0185-S

Chip Quik, Inc.Chip Quik, Inc.
PA0185-S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: PA0185-S
Manufacturer/Brand: Chip Quik, Inc.

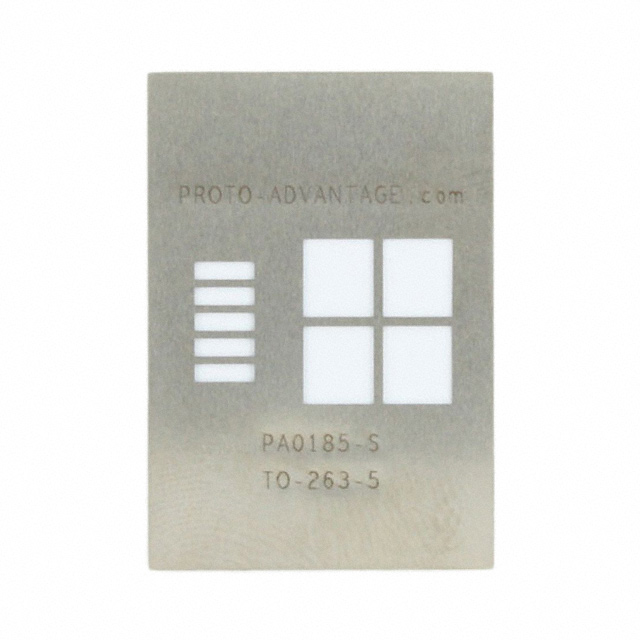

Product description TO-263-5 STENCIL
Datasheets: 1.PA0185-S.pdf2.PA0185-S.pdf3.PA0185-S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 8536 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 8536 pcs
Reference Price (In US Dollars)
1 pcs
$4.238
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$4.238

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of PA0185-S

Part Number PA0185-S Manufacturer Chip Quik, Inc.
Description TO-263-5 STENCIL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 8536 pcs Data sheet 1.PA0185-S.pdf2.PA0185-S.pdf3.PA0185-S.pdf
Type TO/DDPAK Thickness 0.0040" (0.102mm)
Thermal Center Pad 0.394" L x 0.433" W (10.00mm x 11.00mm) Series Proto-Advantage
Pitch 0.067" (1.70mm) Outer Dimension 0.900" L x 1.300" W (22.86mm x 33.02mm)
Number of Positions 5 Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Stainless Steel Lead Free Status / RoHS Status Lead free / RoHS Compliant
Inner Dimension 0.400" L x 0.390" W (10.16mm x 9.91mm)
