DH2CB1PA

Cherry Switches (ZF Electronics)

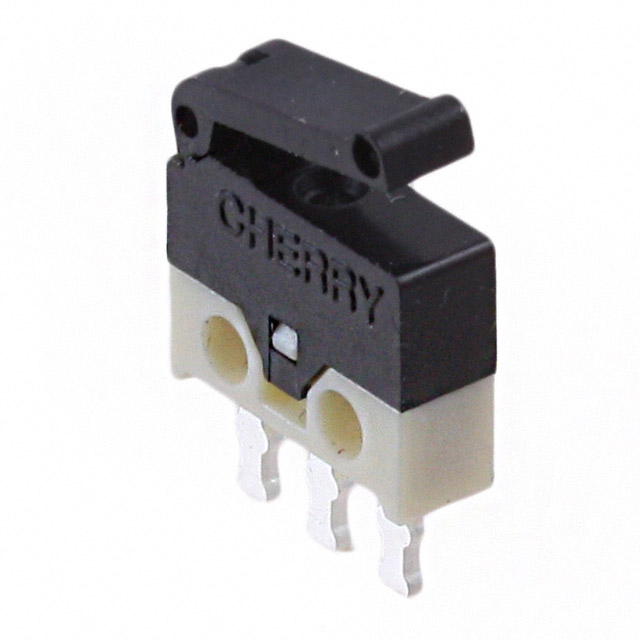

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DH2CB1PA
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 500MA
Datasheets:	1.DH2CB1PA.pdf 2.DH2CB1PA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42906 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 42906 pcs

Reference Price (In US Dollars)

1 pcs: $1.419

10 pcs: $1.312

25 pcs: $1.23

50 pcs: $1.202

100 pcs: $0.956

250 pcs: $0.902

500 pcs: $0.847

1000 pcs: $0.792

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.419

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DH2CB1PA

Part Number	DH2CB1PA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 500MA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42906 pcs	Data sheet	1.DH2CB1PA.pdf 2.DH2CB1PA.pdf
Voltage Rating - DC	30V	Termination Style	Solder Lug
Switch Function	On-Mom	Series	DH
Release Force	-	Pretravel	0.051" (1.3mm)
Packaging	Bulk	Overtravel	0.011" (0.3mm)
Other Names	CH173 DH2C-B1PA	Operating Temperature	-25°C ~ 70°C
Operating Position	0.264" (6.7mm)	Operating Force	50gf
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	50,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	30,000 Cycles
Differential Travel	0.025" (0.6mm)	Current Rating	500mA (DC)
Circuit	SPDT	Actuator Type	Lever, Simulated Roller
