DG23-B2RA

Cherry Switches (ZF Electronics)

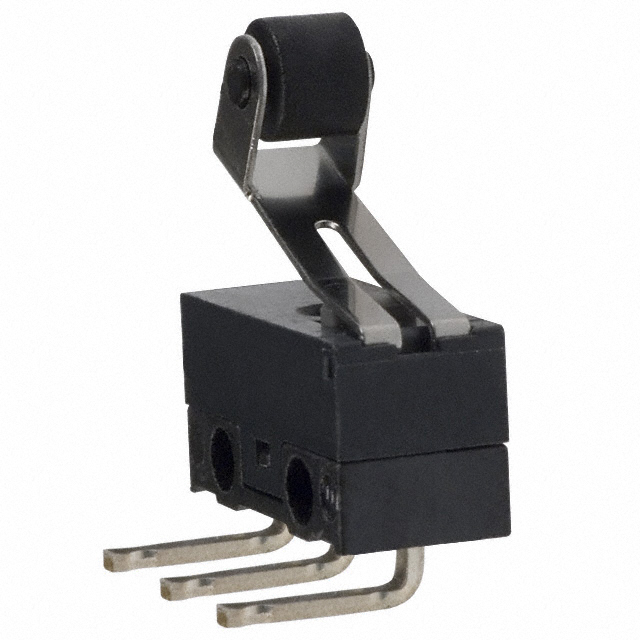

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DG23-B2RA
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SWITCH SNAP ACTION SPDT 50MA 30V
Datasheets:	DG23-B2RA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32295 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 32295 pcs

Reference Price (In US Dollars)

2760 pcs: $0.943

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.943

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DG23-B2RA

Part Number	DG23-B2RA	Manufacturer	Cherry Switches (ZF Electronics)
Description	SWITCH SNAP ACTION SPDT 50MA 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32295 pcs	Data sheet	DG23-B2RA.pdf
Voltage Rating - DC	30V	Termination Style	PC Pin
Switch Function	On-Mom	Series	DG
Release Force	-	Pretravel	0.060" (1.5mm)
Packaging	Bulk	Overtravel	0.022" (0.55mm)
Other Names	CH622 DG23B2RA DG2C-B2RA	Operating Temperature	-25°C ~ 85°C
Operating Position	0.488" (12.4mm)	Operating Force	60gf
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	18 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.020" (0.5mm)	Current Rating	50mA (DC)
Circuit	SPDT	Actuator Type	Lever, Roller
