AN820032

Cherry Switches (ZF Electronics)

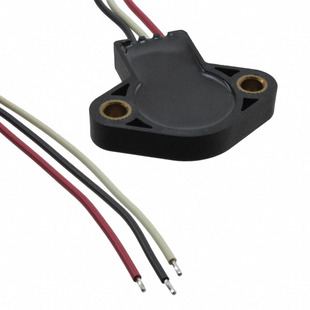

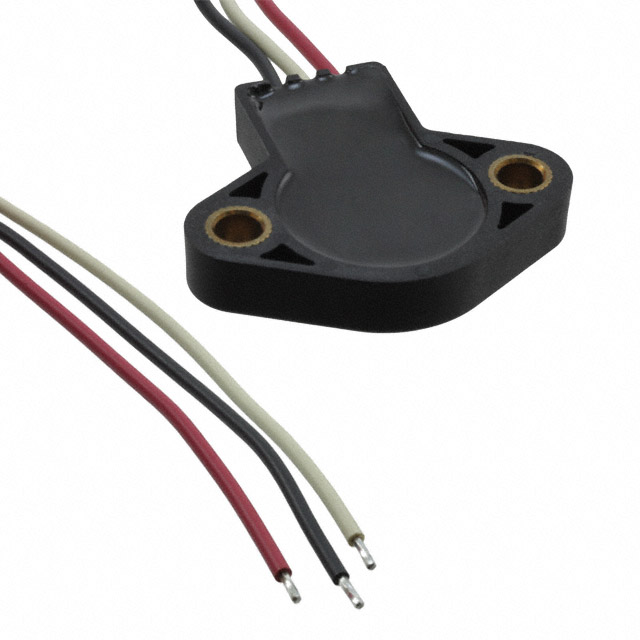

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AN820032
Manufacturer/Brand:	Cherry Switches (ZF Electronics)
Product description	SENSOR ANGLE 360DEG WIRE LEADS
Datasheets:	AN820032.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2629 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2629 pcs

Reference Price (In US Dollars)

100 pcs: $11.831

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$11.831

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AN820032

Part Number	AN820032	Manufacturer	Cherry Switches (ZF Electronics)
Description	SENSOR ANGLE 360DEG WIRE LEADS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2629 pcs	Data sheet	AN820032.pdf
Voltage - Supply	5V	Termination Style	Wire Leads
Technology	Hall Effect	Supplier Device Package	-
Series	AN8	Rotation Angle - Electrical, Mechanical	0° ~ 360°, Continuous
Resistance Tolerance	-	Packaging	Bulk
Package / Case	Module	Output Signal	Clockwise Increase
Output	Analog Voltage	Other Names	AN820032-ND CH202
Operating Temperature	-40°C ~ 150°C	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	18 Weeks
Linearity	±3.5%	Linear Range	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Measuring	Angle
Detailed Description	Hall Effect Sensor Angle External Magnet, Not Included Wire Leads	Actuator Type	External Magnet, Not Included
