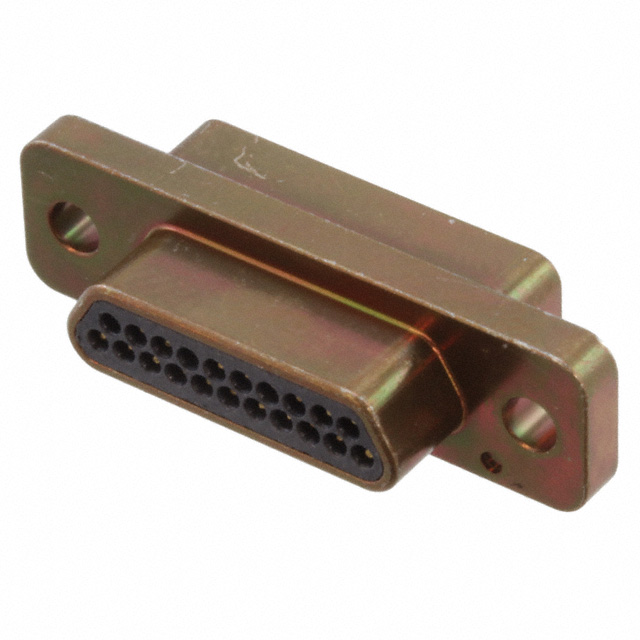

ITT Cannon, LLC
| Part Number | M83513/01-CC | Manufacturer | ITT Cannon, LLC |
|---|---|---|---|
| Description | CONN MICRO-D PLUG 21POS STR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1632 pcs | Data sheet | M83513/01-CC.pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Voltage | - |
| Type Attributes | - | Termination | Solder Cup |
| Stacking Direction | Signal | Shell Size - Insert (Convert From) | Aluminum, Yellow Chromate Cadmium Plated |
| Series | Military, MIL-DTL-83513 | RoHS Status | Bulk |
| Pitch - Connector | - | Other Names | 1200-1004 1200-1004-MIL 154174-0000 IM83513/01-CC IM83513/01-CC-ND M83513/01-CC-ND M83513/01-CCPEI M83513/01-CCPEI-ND M8351301CC |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions | 21 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 11 Weeks | Manufacturer Part Number | M83513/01-CC |
| Length - Threaded Portion Below Head | - | Features | - |
| Expanded Description | 21 Position D-Type, Micro-D Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup | Description | CONN MICRO-D PLUG 21POS STR |
| Current Rating (Per Contact) | Housing/Shell (Unthreaded) | Current Rating | 3A |
| Contact Form | 0.050 Pitch x 0.043 Row to Row | Contact Finish Thickness | Gold |
| Connector Usage | D-Type, Micro-D | Connector Type | Plug, Male Pins |
| Color | - | Cable Opening | Liquid Crystal Polymer (LCP) |
| Cable Diameter | 50µin (1.27µm) | Backset Spacing | - |
