PES1-S12-D15-M-TR

CUI, Inc.

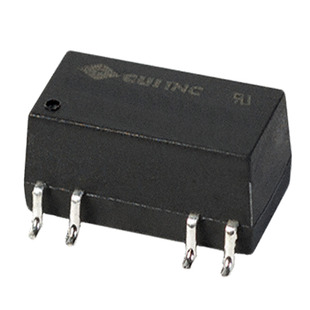

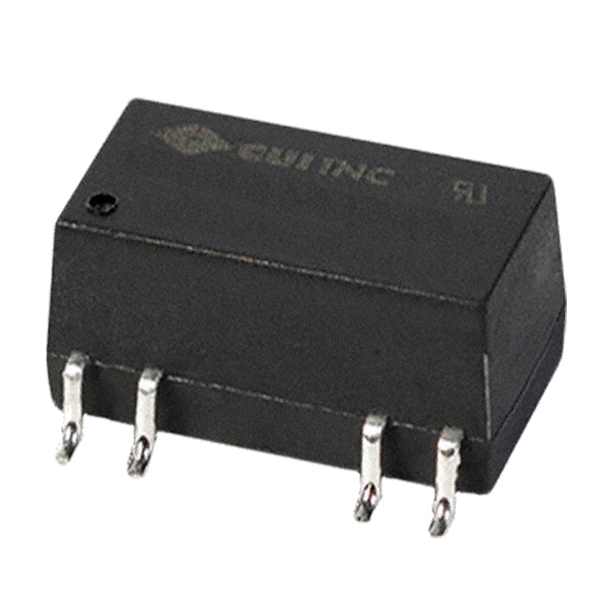

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PES1-S12-D15-M-TR
Manufacturer/Brand:	CUI, Inc.
Product description	DC DC CONVERTER +/-15V 1W
Datasheets:	PES1-S12-D15-M-TR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20628 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20628 pcs

Reference Price (In US Dollars)

500 pcs: $1.544

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.544

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PES1-S12-D15-M-TR

Part Number	PES1-S12-D15-M-TR	Manufacturer	CUI, Inc.
Description	DC DC CONVERTER +/-15V 1W	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20628 pcs	Data sheet	PES1-S12-D15-M-TR.pdf
Voltage - Output 3	-	Voltage - Output 2	-15V
Voltage - Output 1	15V	Voltage - Isolation	3kV
Voltage - Input (Min)	10.8V	Voltage - Input (Max)	13.2V
Type	Isolated Module	Size / Dimension	0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Series	PES1-M	Power (Watts)	1W
Packaging	Tape & Reel (TR)	Package / Case	8-SMD Module, 6 Leads, Gull Wing
Other Names	PES1S12D15MTR	Operating Temperature	-40°C ~ 105°C
Number of Outputs	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	SCP	Efficiency	81%
Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 10.8V - 13.2V Input	Current - Output (Max)	33mA, 33mA
Control Features	-	California Prop 65	Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Applications	ITE (Commercial)
