ACZ09BR1E-20FD1-20C10P

CUI, Inc.CUI, Inc.

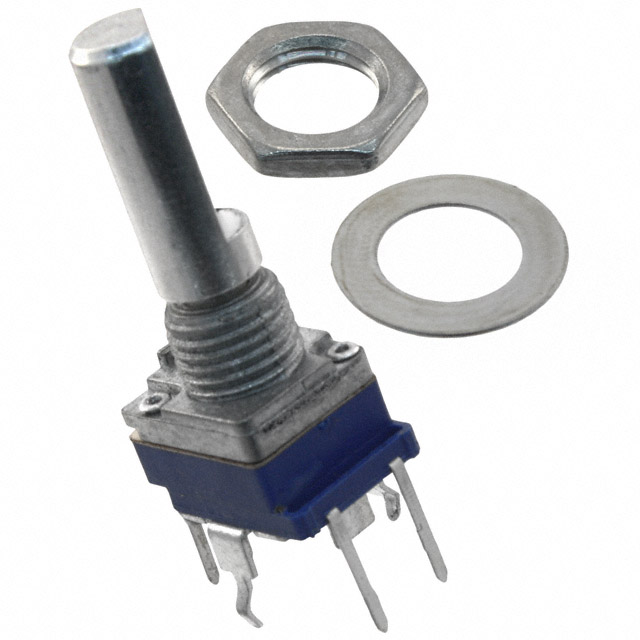

ACZ09BR1E-20FD1-20C10P Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ACZ09BR1E-20FD1-20C10P
Manufacturer/Brand: CUI, Inc.
Product description ROTARY ENCODER MECHANICAL 10PPR
Datasheets: ACZ09BR1E-20FD1-20C10P.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 45881 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 45881 pcs
Reference Price (In US Dollars)
1000 pcs
$0.756
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.756

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ACZ09BR1E-20FD1-20C10P

Part Number ACZ09BR1E-20FD1-20C10P Manufacturer CUI, Inc.
Description ROTARY ENCODER MECHANICAL 10PPR Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 45881 pcs Data sheet ACZ09BR1E-20FD1-20C10P.pdf
Voltage - Supply 5V Termination Style PC Pin
Series ACZ09 Rotational Life (Cycles Min) 30K
Pulses per Revolution 10 Output Type Quadrature (Incremental)
Other Names 074-0715R
102-2223
ACZ09BR1E20FD120C10P		 Orientation Vertical
Mounting Type Panel, PCB Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Encoder Type Mechanical
Detent Yes California Prop 65 Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov.
Built in Switch Yes Actuator Type 6mm Dia Flatted End
