TDD01H0SB1R

C&K

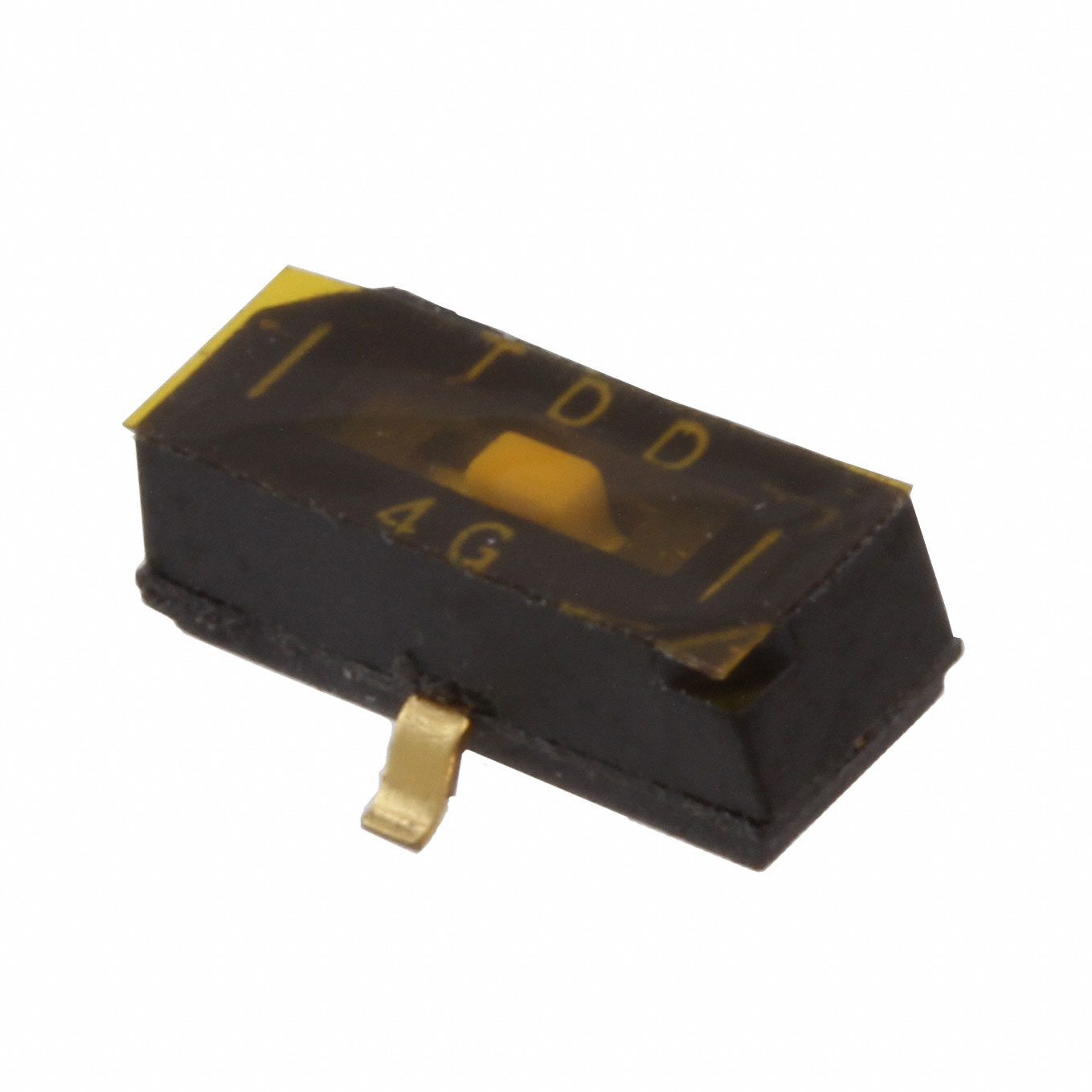

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TDD01H0SB1R
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPDT 25MA 24V
Datasheets:	TDD01H0SB1R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	98214 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 98214 pcs

Reference Price (In US Dollars)

1000 pcs: $0.42

5000 pcs: $0.368

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.42

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TDD01H0SB1R

Part Number	TDD01H0SB1R	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPDT 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	98214 pcs	Data sheet	TDD01H0SB1R.pdf
Washable	Yes	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	TDD
Pitch	-	Packaging	Tape & Reel (TR)
Other Names	CKN10546TR	Operating Temperature	-30°C ~ 85°C
Number of Positions	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	200 Cycles
Manufacturer Standard Lead Time	14 Weeks	Length	0.236" (6.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.091" (2.30mm)
Features	Tape Seal	Electrical Life	200 Cycles
Detailed Description	Dip Switch SPDT 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPDT	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Flush, Recessed
