SDA09H0SBD

C&K

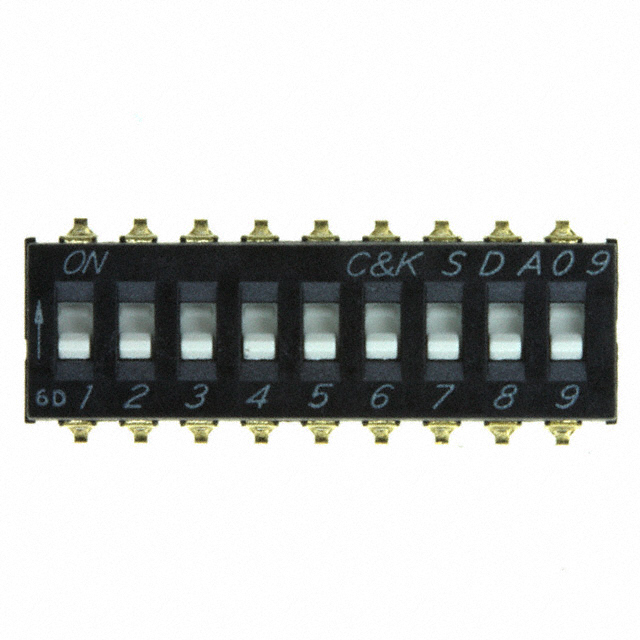

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDA09H0SBD
Manufacturer/Brand:	C&K
Product description	SWITCH SLIDE DIP SPST 25MA 24V
Datasheets:	SDA09H0SBD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	63157 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 63157 pcs

Reference Price (In US Dollars)

1 pcs: $0.929

15 pcs: $0.902

30 pcs: $0.855

60 pcs: $0.799

105 pcs: $0.781

255 pcs: $0.669

510 pcs: $0.651

1005 pcs: $0.558

5010 pcs: $0.511

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.929

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDA09H0SBD

Part Number	SDA09H0SBD	Manufacturer	C&K
Description	SWITCH SLIDE DIP SPST 25MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63157 pcs	Data sheet	SDA09H0SBD.pdf
Washable	No	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	SDA
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	*SDA09H0SBD CKN6095	Operating Temperature	-40°C ~ 85°C
Number of Positions	9	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	16 Weeks	Length	0.978" (24.84mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.175" (4.45mm)
Features	-	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 9 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC	Current Rating	25mA
Contact Material	Beryllium Copper	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Flush, Recessed
