C&K

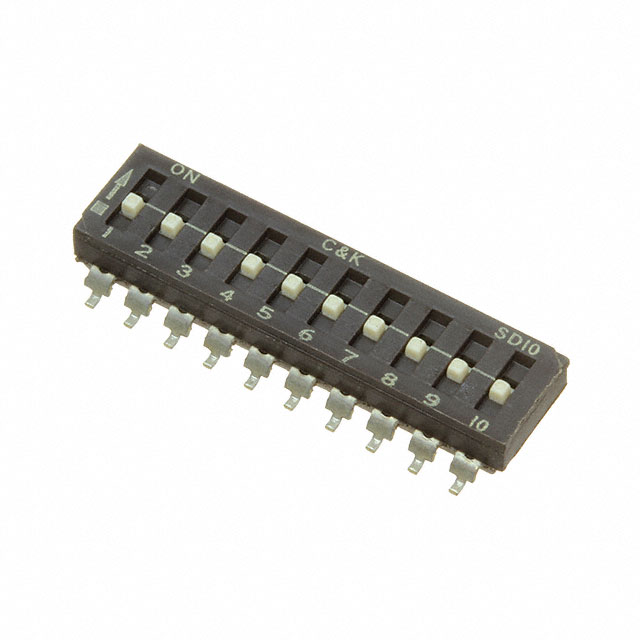

| Part Number | SD10H1SBD | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 25V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39794 pcs | Data sheet | SD10H1SBD.pdf |
| Washable | No | Voltage Rating | 25VDC |
| Termination Style | Gull Wing | Series | SD |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | CKN11914 SD10H1SBD-ND SER2LBKRDGNAU0A |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 2,000 Cycles |
| Manufacturer Standard Lead Time | 13 Weeks | Length | 1.058" (26.87mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.165" (4.20mm) |
| Features | - | Electrical Life | 2,000 Cycles |
| Detailed Description | Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 100mA 25VDC | Current Rating | 100mA |
| Contact Material | Beryllium Copper | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphthalamide (PPA) |
| Actuator Type | Slide (Standard) | Actuator Level | Raised |
