C&K

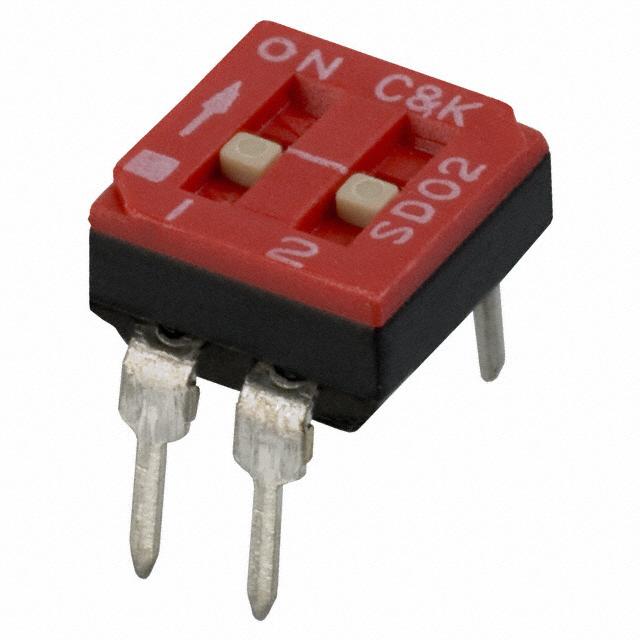

| Part Number | SD02H0K | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 25V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4771 pcs | Data sheet | SD02H0K.pdf |
| Washable | Yes | Voltage Rating | 25VDC |
| Termination Style | PC Pin | Series | SD |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *SD02H0K CKN3064 SD02HOK |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 2,000 Cycles |
| Length | 0.258" (6.55mm) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Height Above Board | 0.178" (4.52mm) | Features | Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 2 Position Through Hole Slide (Standard) Actuator 100mA 25VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polybutylene Terephthalate (PBT) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
