MC03L1NCGD

C&K

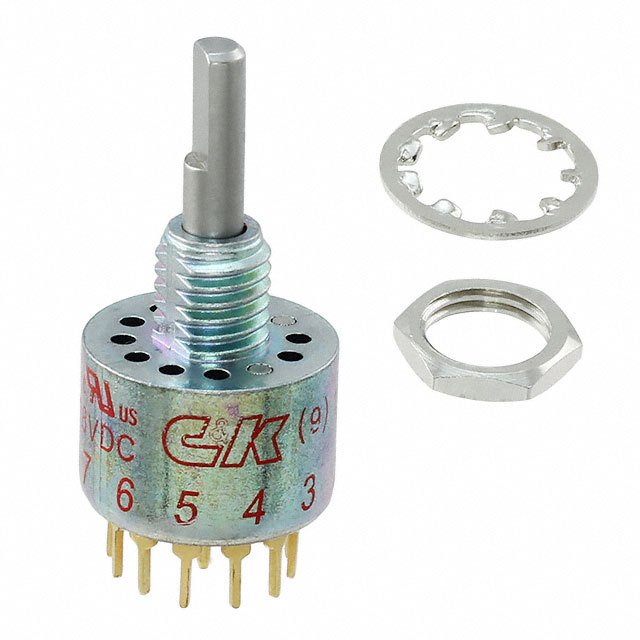

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MC03L1NCGD
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 3POS 250MA 125V
Datasheets:	MC03L1NCGD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7484 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7484 pcs

Reference Price (In US Dollars)

1 pcs: $6.191

10 pcs: $5.779

25 pcs: $5.696

50 pcs: $5.614

100 pcs: $4.953

250 pcs: $4.788

500 pcs: $4.706

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.191

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MC03L1NCGD

Part Number	MC03L1NCGD	Manufacturer	C&K
Description	SWITCH ROTARY 3POS 250MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7484 pcs	Data sheet	MC03L1NCGD.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	PC Pin	Series	M
Panel Cutout Dimensions	Circular - 6.60mm Dia	Other Names	CKN11896 MC03L1NCGD-ND
Operating Force	2.880 ~ 5.041gfm	Number of Positions	3
Number of Poles per Deck	1	Number of Decks	1
Mounting Type	Panel Mount, Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Fixed	Features	-
Detailed Description	Rotary Switch 3 Position SP3T 250mA (AC/DC) 125VAC Panel Mount, Through Hole	Depth Behind Panel	10.42mm
Current Rating	250mA (AC/DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit per Deck	SP3T	Angle of Throw	30°
Actuator Type	Flatted (3.17mm Dia)	Actuator Length	10.16mm
