C&K
| Part Number | KT11P4SA2M33 | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 1VA 50V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5656 pcs | Data sheet | 1.KT11P4SA2M33.pdf2.KT11P4SA2M33.pdf |
| Termination Style | Gull Wing | Switch Travel | - |
| Switch Function | Off-Mom | Series | KT |
| Packaging | Tape & Reel (TR) | Outline | 6.60mm x 6.60mm |
| Other Names | CKN1564TR KT11P4SA2M33-ND KT11P4SA2M33TR KT11P4SA2M33TR-ND |
Operating Temperature | -40°C ~ 90°C |
| Operating Force | 300gf | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 100,000 Cycles |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Ingress Protection | IP57 - Dust Protected, Waterproof |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Sealed |

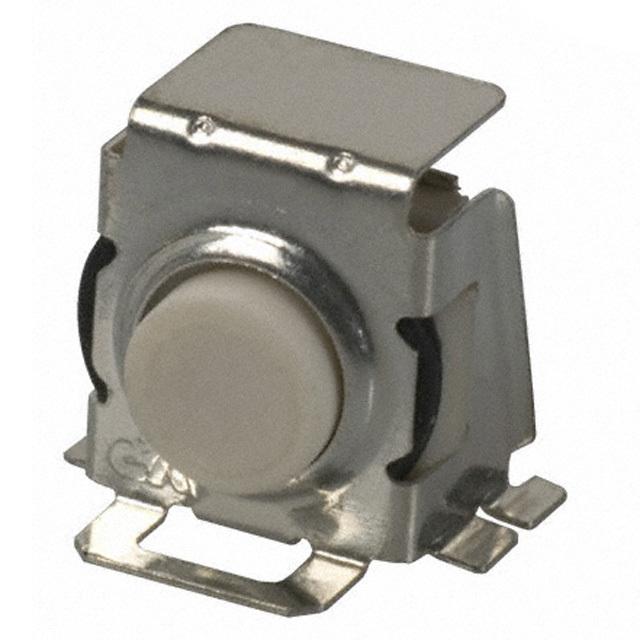

| Detailed Description | Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle | Contact Rating @ Voltage | 1VA @ 50VAC/DC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Side Actuated | Actuator Material | Polyamide (PA), Nylon |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | - |
