C&K

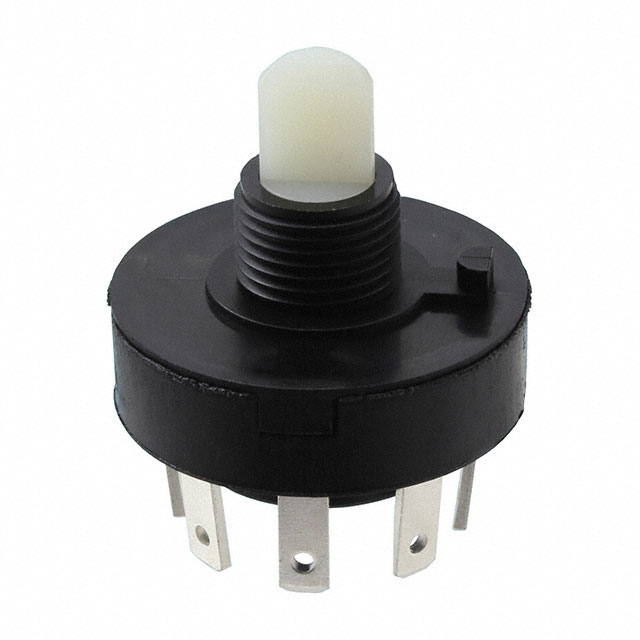

| Part Number | H20307RR05Q | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH ROTARY 3POS 12A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33878 pcs | Data sheet | H20307RR05Q.pdf |
| Voltage Rating - DC | 125V | Voltage Rating - AC | 125V |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Series | H |
| Panel Cutout Dimensions | Circular - 9.78mm Dia | Other Names | *H20307RR05Q CKN10958 H20307RR05Q-ND |
| Operating Force | - | Number of Positions | 3 |
| Number of Poles per Deck | 2 | Number of Decks | 1 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Index Stops | Fixed | Features | - |
| Detailed Description | Rotary Switch 3 Position DP3T 12A (AC), 1A (DC) 125VAC Panel Mount | Depth Behind Panel | 15.25mm |
| Current Rating | 12A (AC), 1A (DC) | Contact Timing | Not Specified |
| Contact Material | Copper | Contact Finish | Silver |
| Circuit per Deck | DP3T | Angle of Throw | 45° |
| Actuator Type | Flatted (6.35mm Dia) | Actuator Length | 7.29mm |
