DRQ125-100-R

Bussmann (Eaton)

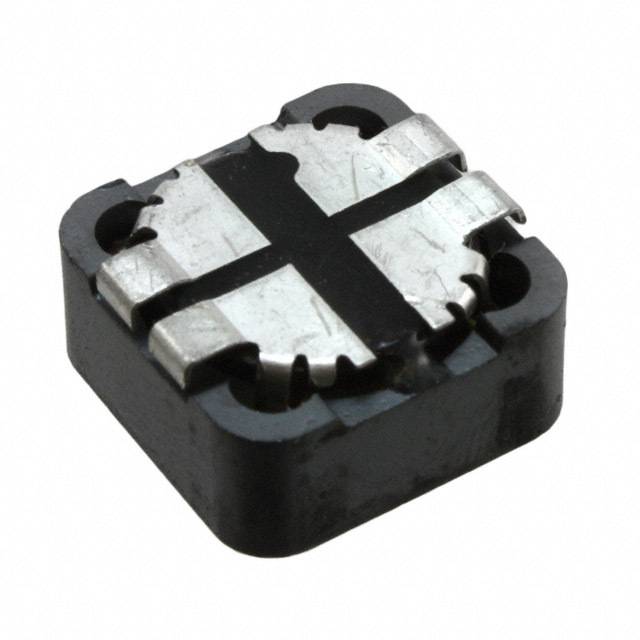

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DRQ125-100-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 9.654UH SMD
Datasheets:	DRQ125-100-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	75498 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 75498 pcs

Reference Price (In US Dollars)

600 pcs: $0.352

1200 pcs: $0.321

3000 pcs: $0.31

6000 pcs: $0.30

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.352

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DRQ125-100-R

Part Number	DRQ125-100-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 9.654UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	75498 pcs	Data sheet	DRQ125-100-R.pdf
Tolerance	±20%	Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Shielding	Shielded	Series	DRQ
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1289-2 DRQ125-100 DRQ125-100-ND DRQ125-100-R-ND DRQ125-100R DRQ125100R
Operating Temperature	-40°C ~ 125°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	38.62µH	Inductance - Connected In Parallel	9.654µH
Height	0.236" (6.00mm)	Detailed Description	Shielded 2 Coil Inductor Array 38.62µH Inductance - Connected in Series 9.654µH Inductance - Connected in Parallel 18.9 mOhm DC Resistance (DCR) - Parallel 5.35A Nonstandard
DC Resistance (DCR) - Series	75.7 mOhm	DC Resistance (DCR) - Parallel	18.9 mOhm
Current Saturation - Series	3.59A	Current Saturation - Parallel	7.17A
Current Rating - Series	2.67A	Current Rating - Parallel	5.35A
