Bussmann (Eaton)
| Part Number | CTX100-1A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 99.45UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4722 pcs | Data sheet | CTX100-1A-R.pdf |

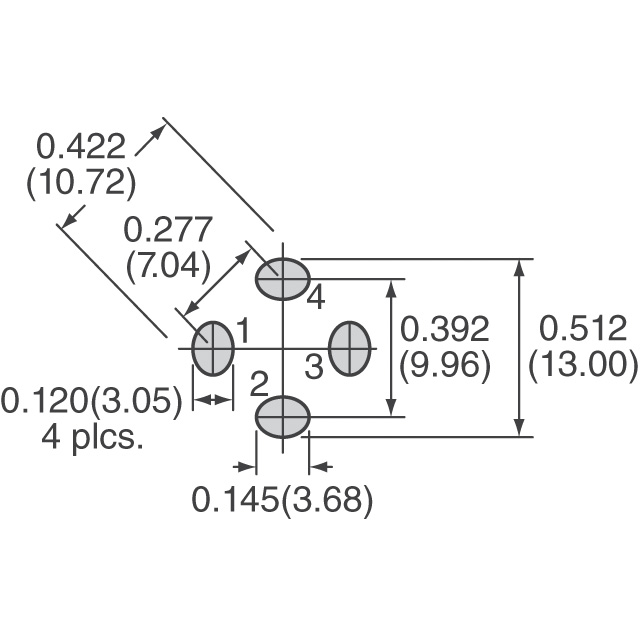

| Tolerance | ±25% | Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Shielding | Unshielded | Series | OCTA-PAC® PLUS |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | CTX100-1A CTX100-1A-ND |
| Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 397.8µH |
| Inductance - Connected In Parallel | 99.45µH | Height | 0.165" (4.19mm) |
| Detailed Description | Unshielded 2 Coil Inductor Array 397.8µH Inductance - Connected in Series 99.45µH Inductance - Connected in Parallel 686 mOhm Max DC Resistance (DCR) - Parallel 740mA Nonstandard | DC Resistance (DCR) - Series | 2.745 Ohm Max |
| DC Resistance (DCR) - Parallel | 686 mOhm Max | Current Saturation - Series | 410mA |
| Current Saturation - Parallel | 820mA | Current Rating - Series | 370mA |
| Current Rating - Parallel | 740mA |
