PM2120-8R2M

Bourns, Inc.

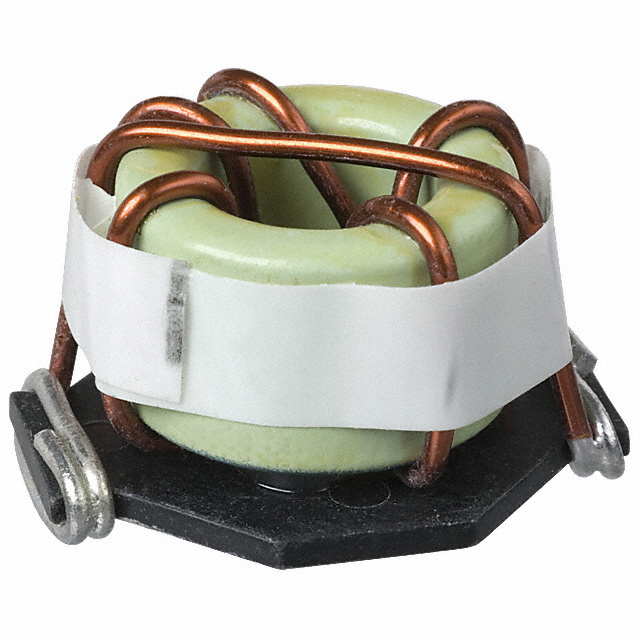

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PM2120-8R2M
Manufacturer/Brand:	Bourns, Inc.
Product description	FIXED IND 8.2UH 14.7A 6 MOHM SMD
Datasheets:	PM2120-8R2M.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4035 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4035 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PM2120-8R2M

Part Number	PM2120-8R2M	Manufacturer	Bourns, Inc.
Description	FIXED IND 8.2UH 14.7A 6 MOHM SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4035 pcs	Data sheet	PM2120-8R2M.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	1.201" L x 1.000" W (30.50mm x 25.40mm)
Shielding	Unshielded	Series	PM2120
Ratings	-	Q @ Freq	-
Packaging	Bulk	Package / Case	Nonstandard
Other Names	M6182	Operating Temperature	-55°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Inductance Frequency - Test	1kHz	Inductance	8.2µH
Height - Seated (Max)	0.820" (20.83mm)	Frequency - Self Resonant	-
Detailed Description	8.2µH Unshielded Toroidal Inductor 14.7A 6 mOhm Max Nonstandard	DC Resistance (DCR)	6 mOhm Max
Current Rating	14.7A	Current - Saturation	-
