AMS22B5A1BHASL110N

Bourns, Inc.Bourns, Inc.

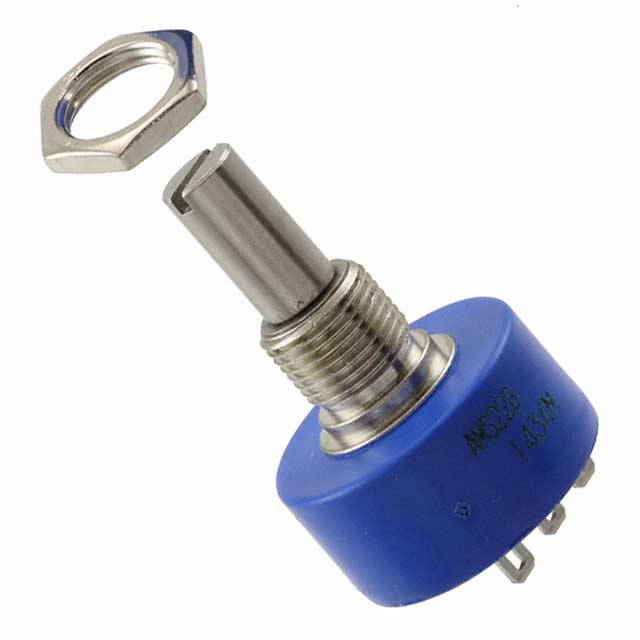

AMS22B5A1BHASL110N Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AMS22B5A1BHASL110N
Manufacturer/Brand: Bourns, Inc.
Product description SENSOR ROTARY 100DEG SOLDER LUG
Datasheets: AMS22B5A1BHASL110N.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 3220 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 3220 pcs
Reference Price (In US Dollars)
1 pcs
$14.268
5 pcs
$13.62
10 pcs
$12.323
25 pcs
$11.35
50 pcs
$10.053
100 pcs
$9.728
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$14.268

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AMS22B5A1BHASL110N

Part Number AMS22B5A1BHASL110N Manufacturer Bourns, Inc.
Description SENSOR ROTARY 100DEG SOLDER LUG Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 3220 pcs Data sheet AMS22B5A1BHASL110N.pdf
Voltage - Supply 5V Termination Style Solder Lug
Technology Hall Effect Supplier Device Package -
Series AMS22B Rotation Angle - Electrical, Mechanical 10° ~ 100°, Continuous
Resistance Tolerance - Packaging Bulk
Package / Case Module, Slotted Shaft Output Signal Counterclockwise Increase
Output Analog Voltage Operating Temperature -40°C ~ 125°C
Mounting Type Panel Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Linearity ±0.5% Linear Range -
Lead Free Status / RoHS Status Lead free / RoHS Compliant For Measuring Rotary Position
Detailed Description Hall Effect Sensor Rotary Position Slotted Shaft Solder Lug Actuator Type Slotted Shaft
