56AAD-C28-B15/R80L

Bourns, Inc.Bourns, Inc.

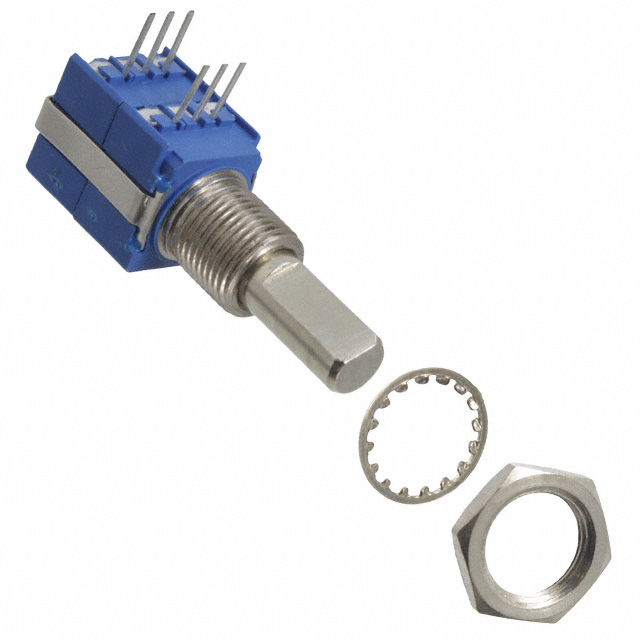

56AAD-C28-B15/R80L Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 56AAD-C28-B15/R80L
Manufacturer/Brand: Bourns, Inc.
Product description POT 10K OHM 1/2W PLASTIC LINEAR
Datasheets: 56AAD-C28-B15/R80L.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 11415 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 11415 pcs
Reference Price (In US Dollars)
270 pcs
$2.905
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$2.905

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 56AAD-C28-B15/R80L

Part Number 56AAD-C28-B15/R80L Manufacturer Bourns, Inc.
Description POT 10K OHM 1/2W PLASTIC LINEAR Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 11415 pcs Data sheet 56AAD-C28-B15/R80L.pdf
Tolerance ±20% Termination Style PC Pins
Temperature Coefficient ±1000ppm/°C Taper Linear
Size - Body Rectangular - 0.522" x 0.492" Face x 0.650" H (13.25mm x 12.50mm x 16.51mm) + Switch Series 56
Rotation 290° Resistive Material Conductive Plastic
Resistance (Ohms) 10k Power (Watts) 0.5W, 1/2W
Packaging Bulk Other Names 56AADC28B15R80L
Number of Turns 1 Number of Gangs 1
Mounting Type Panel Mount Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 8 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Detailed Description 10k Ohm 1 Gang Linear Panel Mount Potentiometer Rotary, SPDT 1 Turn Conductive Plastic 0.5W, 1/2W PC Pins Bushing Thread 3/8-32
Built in Switch Rotary, SPDT Adjustment Type Side Adjustment
Actuator Type Flatted Actuator Length 0.875" (22.23mm)
Actuator Diameter 0.250" (6.35mm)
