HBC1694A

Bomar (Winchester Electronics)

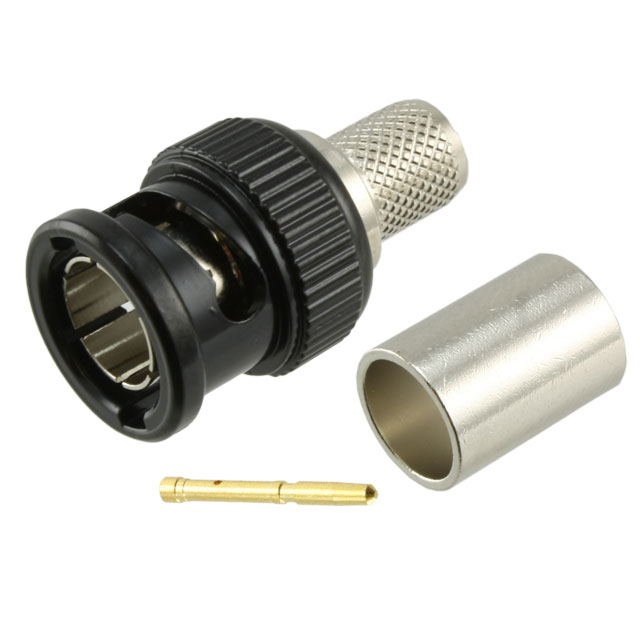

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HBC1694A
Manufacturer/Brand:	Bomar (Winchester Electronics)
Product description	CONN HDBNC PLUG STR 75 OHM CRIMP
Datasheets:	HBC1694A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29761 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29761 pcs

Reference Price (In US Dollars)

1 pcs: $1.897

10 pcs: $1.821

100 pcs: $1.518

250 pcs: $1.328

500 pcs: $1.29

1000 pcs: $1.10

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.897

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HBC1694A

Part Number	HBC1694A	Manufacturer	Bomar (Winchester Electronics)
Description	CONN HDBNC PLUG STR 75 OHM CRIMP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29761 pcs	Data sheet	HBC1694A.pdf
Voltage Rating	500V	Shield Termination	Crimp
Series	Shadow™	Packaging	Bulk
Other Names	991-1012	Operating Temperature	-55°C ~ 200°C
Number of Ports	1	Mounting Type	Free Hanging (In-Line)
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	500	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	0.2dB
Ingress Protection	Weatherproof	Includes	3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance	75 Ohm	Housing Color	Black
Frequency - Max	1GHz	Features	-
Fastening Type	Bayonet Lock	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	BNC, HD Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp	Contact Termination	Crimp
Connector Type	Plug, Male Pin	Connector Style	BNC, HD
Center Contact Plating	Gold	Center Contact Material	Brass
Cable Group	Belden 1694A	Body Material	Brass
Body Finish	Black Nickel
