HSMF-A201-A00J1

Avago Technologies (Broadcom Limited)

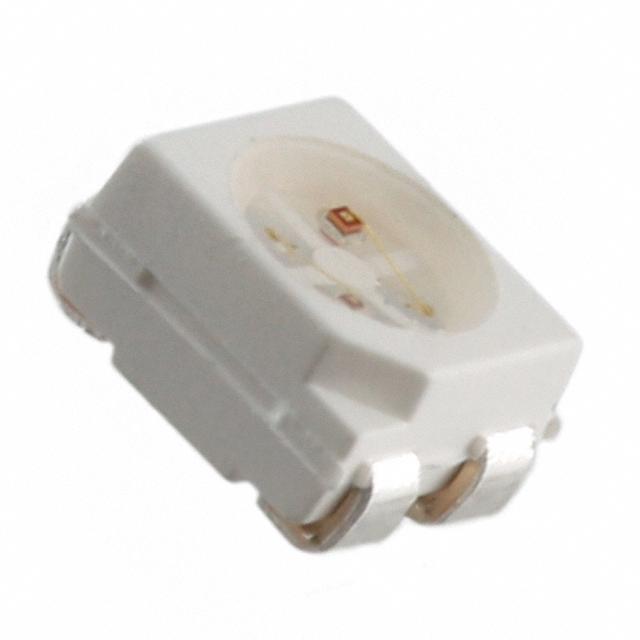

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HSMF-A201-A00J1
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	LED GREEN/RED CLEAR 4PLCC SMD
Datasheets:	1.HSMF-A201-A00J1.pdf 2.HSMF-A201-A00J1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	395800 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 395800 pcs

Reference Price (In US Dollars)

2000 pcs: $0.066

6000 pcs: $0.061

10000 pcs: $0.059

50000 pcs: $0.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.066

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HSMF-A201-A00J1

Part Number	HSMF-A201-A00J1	Manufacturer	Avago Technologies (Broadcom Limited)
Description	LED GREEN/RED CLEAR 4PLCC SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	395800 pcs	Data sheet	1.HSMF-A201-A00J1.pdf 2.HSMF-A201-A00J1.pdf
Wavelength - Peak	565nm Green, 635nm Red	Wavelength - Dominant	569nm Green, 626nm Red
Voltage - Forward (Vf) (Typ)	2.2V Green, 2.2V Red	Viewing Angle	120°
Supplier Device Package	4-PLCC	Size / Dimension	3.20mm L x 2.80mm W
Series	-	Packaging	Tape & Reel (TR)
Package / Case	4-PLCC	Other Names	516-2491-2 HSMF-A201-A00J1-ND HSMFA201A00J1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Millicandela Rating	20mcd Green, 16mcd Red	Manufacturer Standard Lead Time	5 Weeks
Lens Transparency	Clear	Lens Style/Size	Round with Flat Top, 2.20mm
Lens Color	Colorless	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	2.10mm	Features	-
Detailed Description	Green, Red 569nm Green, 626nm Red LED Indication - Discrete 2.2V Green, 2.2V Red 4-PLCC	Current - Test	20mA Green, 20mA Red
Configuration	Independent	Color	Green, Red
Base Part Number	HSMF-A2*
