Avago Technologies (Broadcom Limited)

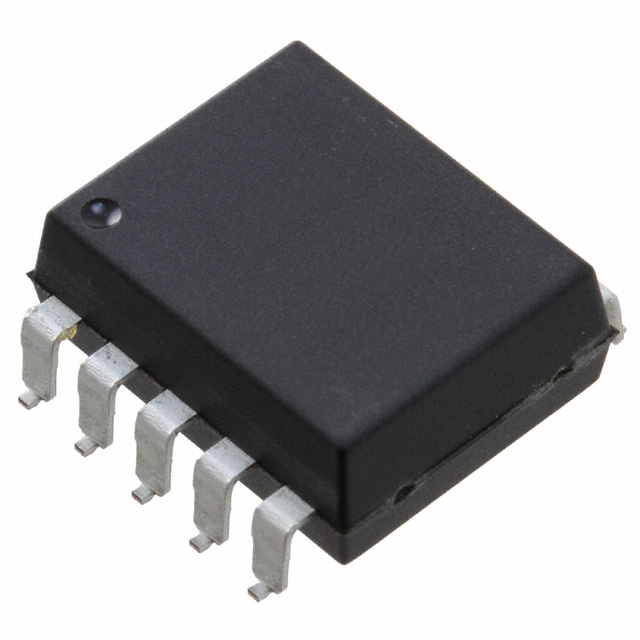

| Part Number | ACNV2601-300E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 7.5KV OPEN COLL 10DIP GW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37706 pcs | Data sheet | ACNV2601-300E.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 7500Vrms |
| Voltage - Forward (Vf) (Typ) | 1.64V | Supplier Device Package | 10-DIP Gull Wing |
| Series | - | Rise / Fall Time (Typ) | 25ns, 10ns |
| Propagation Delay tpLH / tpHL (Max) | 80ns, 80ns | Packaging | Tube |
| Package / Case | 10-SMD, Gull Wing | Output Type | Open Collector, Schottky Clamped |
| Other Names | 516-2888 ACNV2601-300E-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | DC | Detailed Description | Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 7500Vrms 1 Channel 20kV/µs CMTI 10-DIP Gull Wing |
| Data Rate | 10MBd | Current - Output / Channel | 50mA |
| Current - DC Forward (If) (Max) | 20mA | Common Mode Transient Immunity (Min) | 20kV/µs |
