Avago Technologies (Broadcom Limited)

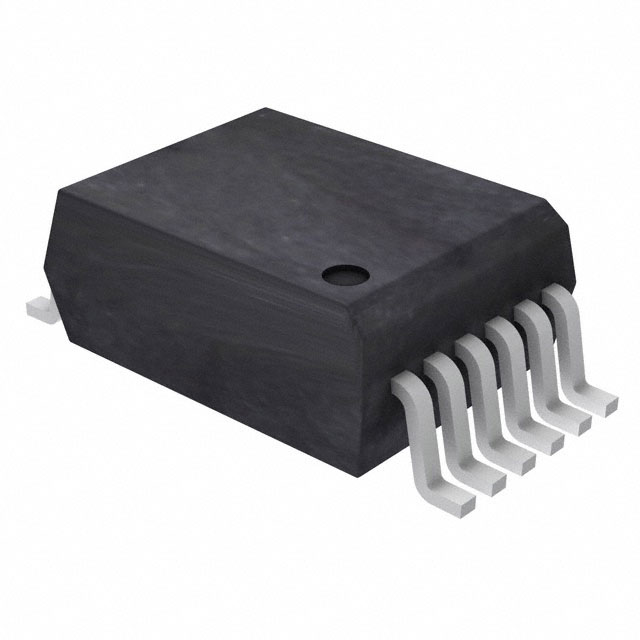

| Part Number | ACFL-5211T-060E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 5KV 2CH TRANS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45922 pcs | Data sheet | ACFL-5211T-060E.pdf |
| Voltage - Output (Max) | 20V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.55V | Vce Saturation (Max) | - |
| Turn On / Turn Off Time (Typ) | 150ns, 500ns | Supplier Device Package | 12-SO |
| Series | Automotive, AEC-Q100, R²Coupler™ | Rise / Fall Time (Typ) | - |
| Packaging | Bulk | Package / Case | 12-SOIC (0.295", 7.50mm Width) |
| Output Type | Transistor | Other Names | 516-3257 ACFL-5211T-060E-ND |
| Operating Temperature | -40°C ~ 125°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | DC | Detailed Description | Optoisolator Transistor Output 5000Vrms 2 Channel 12-SO |
| Current Transfer Ratio (Min) | 32% @ 10mA | Current Transfer Ratio (Max) | 100% @ 10mA |
| Current - Output / Channel | 8mA | Current - DC Forward (If) (Max) | 20mA |
