6N139-000E

Avago Technologies (Broadcom Limited)

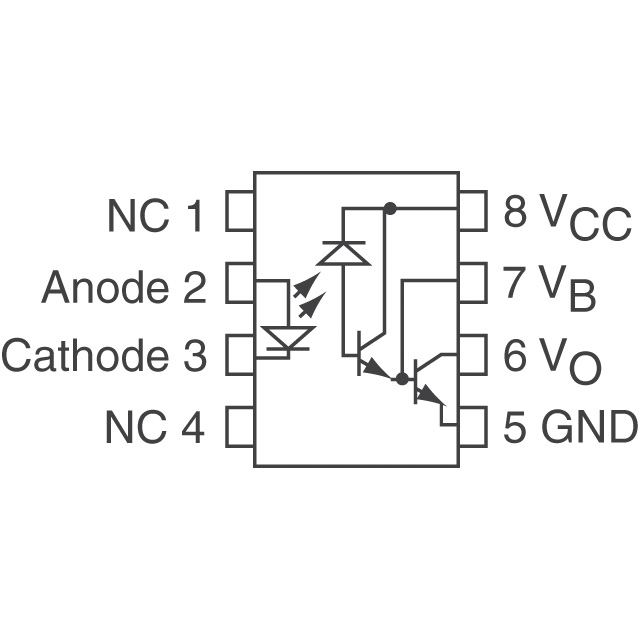

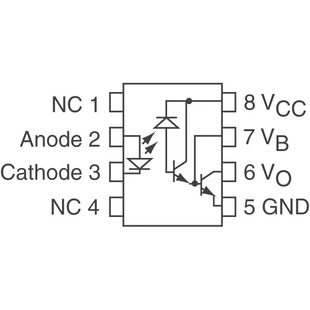

Image may be representation. See specifications for product details.

Product Overview

Part Number:	6N139-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 3.75KV DARL W/BASE 8DIP
Datasheets:	6N139-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	111200 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 111200 pcs

Reference Price (In US Dollars)

1 pcs: $0.518

10 pcs: $0.422

25 pcs: $0.325

100 pcs: $0.292

250 pcs: $0.26

500 pcs: $0.221

1000 pcs: $0.182

2500 pcs: $0.173

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.518

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 6N139-000E

Part Number	6N139-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 3.75KV DARL W/BASE 8DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	111200 pcs	Data sheet	6N139-000E.pdf
Voltage - Output (Max)	18V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.4V	Vce Saturation (Max)	-
Turn On / Turn Off Time (Typ)	200ns, 2µs	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Darlington with Base	Other Names	516-1601-5 6N139000E
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Darlington with Base Output 3750Vrms 1 Channel 8-DIP
Current Transfer Ratio (Min)	500% @ 1.6mA	Current Transfer Ratio (Max)	2600% @ 1.6mA
Current - Output / Channel	60mA	Current - DC Forward (If) (Max)	20mA
Base Part Number	6N139
