5962-8978503KPA

Avago Technologies (Broadcom Limited)

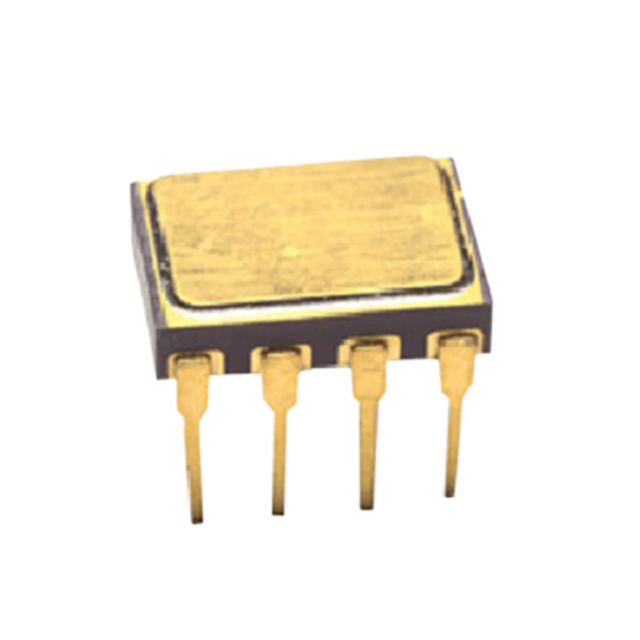

Image may be representation. See specifications for product details.

Product Overview

Part Number:	5962-8978503KPA
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 1.5KV 2CH DARLNG 8-DIP
Datasheets:	5962-8978503KPA.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	206 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 206 pcs

Reference Price (In US Dollars)

7 pcs: $183.633

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$183.633

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 5962-8978503KPA

Part Number	5962-8978503KPA	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 1.5KV 2CH DARLNG 8-DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	206 pcs	Data sheet	5962-8978503KPA.pdf
Voltage - Output (Max)	20V	Voltage - Isolation	1500VDC
Voltage - Forward (Vf) (Typ)	1.4V	Vce Saturation (Max)	110mV
Turn On / Turn Off Time (Typ)	2µs, 8µs	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Darlington	Operating Temperature	-55°C ~ 125°C
Number of Channels	2	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Type	DC	Detailed Description	Optoisolator Darlington Output 1500VDC 2 Channel 8-DIP
Current Transfer Ratio (Min)	200% @ 5mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	40mA	Current - DC Forward (If) (Max)	10mA
